Classic Center MK3
Archived Product
Gallery

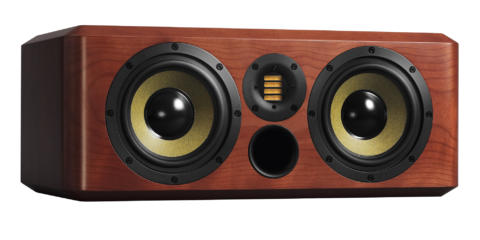

ADAM Audio Classic Center Mk3 High End Loudspeaker - Cherry

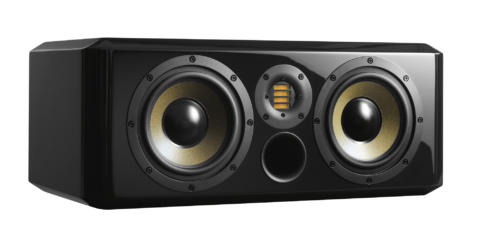

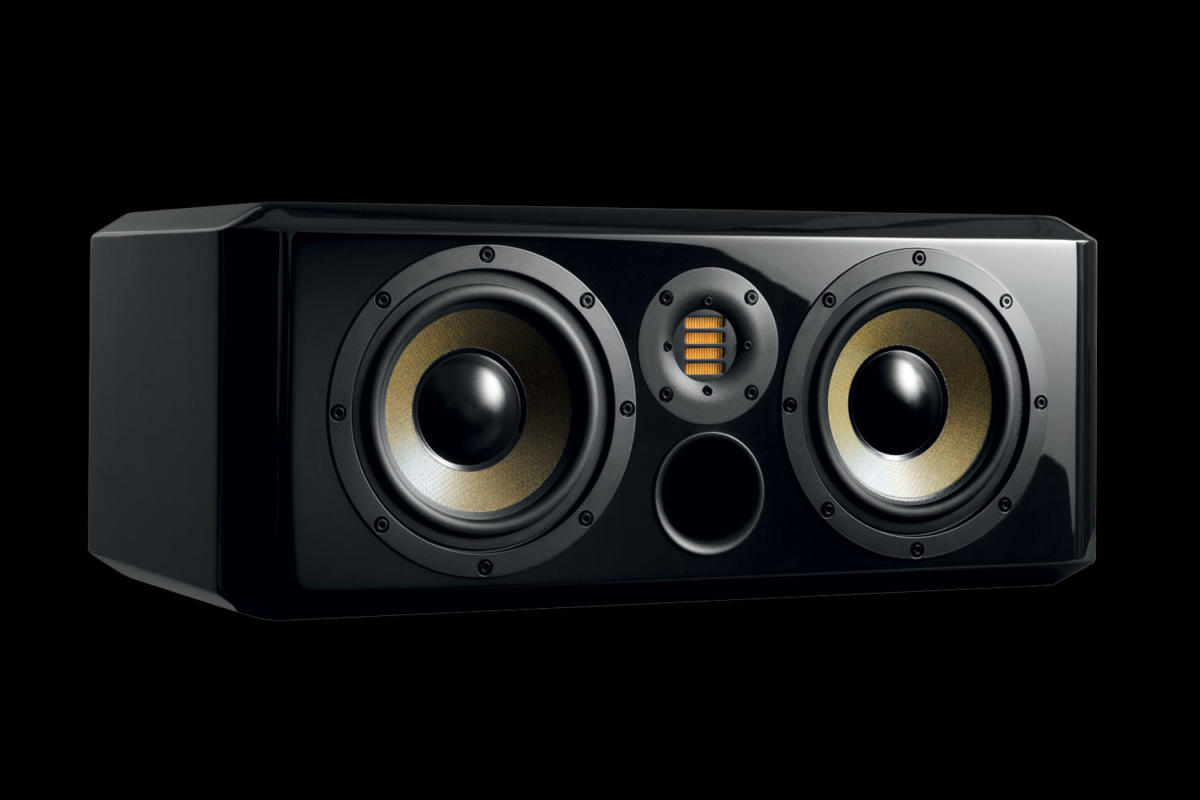

ADAM Audio Classic Center Mk3 High End Loudspeaker - Black Glossy

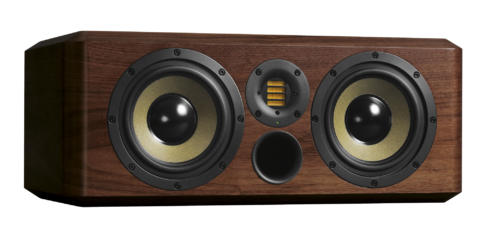

ADAM Audio Classic Center Mk3 High End Loudspeaker - Walnut

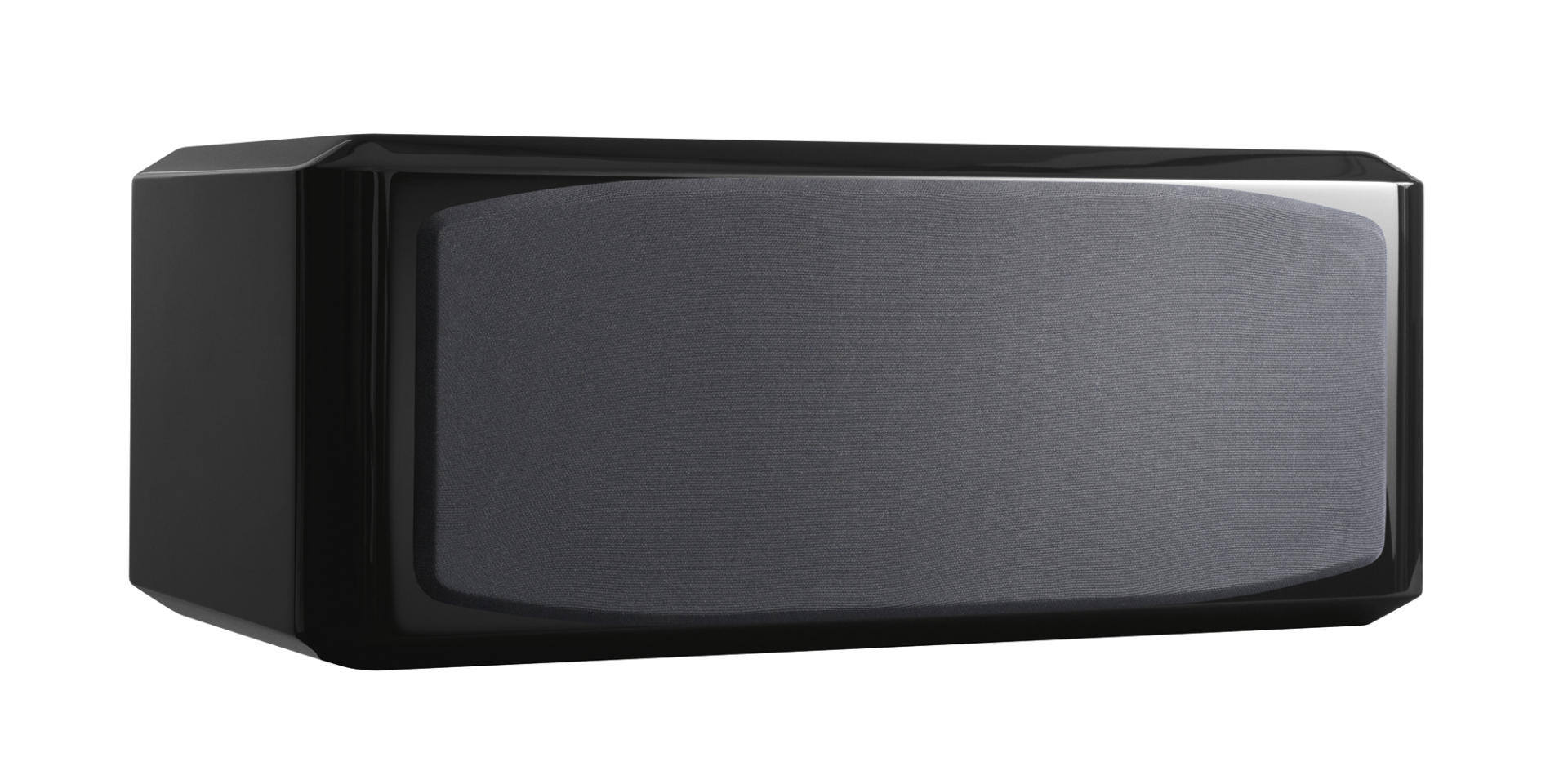

ADAM Audio Classic Center Mk3 High End Loudspeaker - Black Glossy with Hood
Technical Data - Active Version
Woofer
| Number | 2 |
| Basket Ø | 7.5" (186 mm) |
| Cone Material | HexaCone |
Tweeter
| Number | 1 |
| Type | X-ART |
| Velocity Transform Ratio | 4:1 |
| Diaphragm Weight | 0.17 g |
Built-in Amplifiers
| Woofer | 2 |
| Type | PWM |
| Amp. Power RMS / Music | 200 W / 300 W |
| Tweeter | 1 |
| Type | A/B |
| Amp. Power RMS / Music | 50 W / 100 W |
General Data
| Frequency Response | 35 Hz - 50 kHz |
| Crossover Frequencies | 150 / 2400 Hz |
| Input Impedance | 10 kOhm |
| Weight | 33.1 lb (15 kg) |
| Height x Width x Depth | 9" (230 mm) x 22.5" (570 mm) x 12" (300 mm) |
| Finish | Black glossy, Cherry, Walnut |
| Warranty | 5 years |
| Delivery Contents | Front cover, manual, power cord |
Technical Data - Passive Version
Woofer
| Number | 2 |
| Basket Ø | 7.5" (186 mm) |
| Cone Material | HexaCone |
Tweeter
| Number | 1 |
| Type | X-ART |
| Velocity Transform Ratio | 4:1 |
| Diaphragm Weight | 0.17 g |
General Data
| Power Handling | 200 W / 300 W |
| Efficiency | ≥89 dB / W / m |
| Frequency Response | 38 Hz - 50 kHz |
| Crossover Frequencies | 150 / 2400 Hz |
| Impedance | 4 Ohm |
| Weight | 33.1 lb (15 kg) |
| Height x Width x Depth | 9" (230 mm) x 22.5" (570 mm) x 12" (300 mm) |
| Finish | Black glossy, Cherry, Walnut |
| Warranty | 10 years |
| Delivery Contents | Front cover, Manual, bi-wiring terminal |
