ADAM Audio T5V Studio Monitor

T5V

Nearfield Monitor
MIPA Awards 2018
MIPA Awards 2018
Winner
TEC Award
TEC Award
Nominee
MusicTech
MusicTech
Excellence Award

ADAM T5V

The T5V is a highly affordable two-way nearfield monitor and optimized for small control rooms.

With its 5” woofer the bass-frequency response of the T5V extends to 45 Hz. The new U-ART tweeter, a breakthrough solution for use in high-resolution recording and mixing on a budget, goes up to 25 kHz and is mated to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

A beveled cabinet with a rear-firing bass reflex port and a small footprint allows placement anywhere in your room, no matter how small, and contains built-in DSP-controlled driver crossovers and equalization as well as multi-way analog connections. Powered with a 50 W Class D amplifier for the woofer and a 20 W Class D amplifier for the U-ART tweeter, the T5V produces SPLs of up to 106 dB per pair.

Excellent acoustic characteristics, small dimensions and an outstanding cost/performance ratio make this studio monitor perfectly suited for use in small control rooms in music, video and broadcast production.

If you need to hear more bottom end, the T5V is compatible with the ADAM Sub7 and Sub8 subwoofers.

U-ART 1.9” Accelerated Ribbon Tweeter with HPS Waveguide

Polypropylene 5” woofer and rear-firing bass-reflex port

Cumulated Amp. Power RMS: 70 W

Frequency Response: 45 Hz - 25 kHz

Max. SPL Per Pair at 1 m: ≥106 dB

STATE OF THE ART TECHNOLOGY

360 Degree View

Backplate printing may vary in different countries.

APPROVED BY OUR PROFESSIONAL COMMUNITY

"You’d be hard pressed to find a better studio monitor of this design for a similar price. ADAM have certainly delivered on quality for a price point with the T5V studio monitors.”
Rob Gee
MIXDOWN Magazine
"For the price, I don't think there's any other set of studio monitors on the market today that can deliver as good as these can [...]"
Dan Cooper
Pro Tools Expert

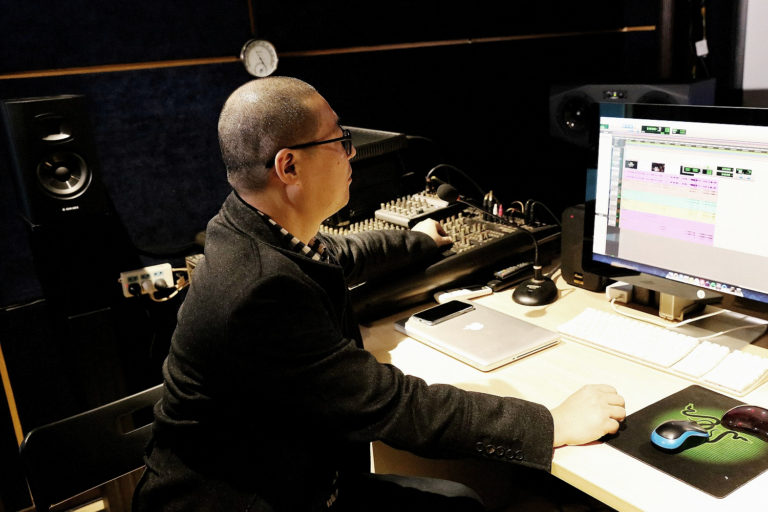

ADAM T5V In Use

Press Reviews

DJcity [English]
Better Music [English]
ProSound.iXBT.com [Russian]
Eric Kauffmann [Spanish]
Pro Tools Expert [English]
Mixdown [English]
Download
PDF (2.5 MB)
Interface [Dutch]
Download
PDF (301 KB)
ProDJ [Russian]
Digital DJ Tips [English]

Features & Benefits

Product Feature
Benefit to the customer
U-ART 1.9” Accelerated Ribbon Tweeter
  • Allows longer operation with fewer signs of fatigue
  • Their breakup is prevented by the folded diaphragms, distortions are effectively reduced to a minimum
  • Advanced dynamic range due to acoustically effective diaphragm surface that is 2.5 times bigger (compared to a classic tweeter according to the piston principle)
The air velocity ratio of 4:1 during the sound generation by folded U-ART membrane

Direct, fast response in the high-range even with complex transients

HPS waveguide from the S Series
  • Makes dispersion more consistent and imaging more stable over a wider area
  • Reduction of early reflections on the surfaces of, e.g. mixing consoles, desks, etc.
Lightweight polypropylene construction of the woofer

Excellent transient response even at high sound levels without breakup of the diaphragm

Vertical 2-way system with 5” woofer

High resolution of the stereo image

Spacious rear-firing bass reflex port

Bass reproduction with very low compression

Linear frequency response of 45 Hz to 25 kHz

Unbiased reproduction in a wide frequency band

Maximum peak sound pressure per pair in 1 m ≥ 106 dB

Powerful, compression-free sound reproduction even at very high sound levels

DSP-powered crossover design

Smooth frequency response without interferences between the drivers in the critical mid-range

Simple room acoustic adjustments via high- and low-shelf filters

Allows optimal adaptation to acoustically difficult listening environments or individual preferences

Analog inputs over XLR and RCA

Optimized for balanced and unbalanced line signals

Acoustically optimized cabinet geometry

Reduction of unwanted reflections on the cabinets

Compact cabinet dimensions

Fits every desktop

2 years warranty with optional extension to 3 years with the registration of the product

Full repair service if required for 5 years

Technical Data

Woofer

Number1
Basket Ø5" (127 mm)
Cone MaterialPolypropylene

Tweeter

Number1
TypeU-ART
Diaphragm Area4 inch² (2420 mm²)
Equiv. Diaphragm Ø1.9" (48 mm)
Velocity Transform Ratio4:1
Diaphragm Weight0.17 g
WaveguideHPS

Built-in Amplifiers

Number2
Woofer1
TypePWM
Amp. Power RMS50 W
Tweeter1
TypePWM
Amp. Power RMS20 W

Control Options

Input SensitivitySwitchable +4 dBu / -10 dBV
GainYes
High-Shelf- 2 dB, 0 dB, +2 dB
Low-Shelf- 2 dB, 0 dB, +2 dB

Input Connectors

AnalogXLR, RCA
Input Impedance10 kOhm / 20 kOhm

General Data

PanelRear
Frequency Response45 Hz - 25 kHz
THD > 80 Hz0.5 %
Max. SPL per pair at 1 m≥106 dB
Crossover Frequency3 kHz
Max. Power Consumption132 W
Weight12.6 lbs (5.7 kg)
Height x Width x Depth11.7" x 7" x 11.7" (298 mm x 179 mm x 297mm)
Warranty5 years (2 years warranty plus 3 years optional with product registration)
Delivery ContentsPower cord, Quick Start Guide
