Complete Your System.

Sub8 PRO

A compact subwoofer delivering intelligent bass, feature-rich DSP technology, and an industry-first Sonarworks integration.

Buy now

An Ideal Foundation

The Sub8 PRO combines advanced DSP technology with outstanding acoustic performance, making it an ideal foundation for compact monitoring systems. This networked subwoofer features a high-excursion 8” woofer, FEA-optimized bass port and powerful Class D amplifier.

An onboard Ethernet connection provides access to ADAM Control and its range of management and calibration tools. Users can manually time-align the subwoofer, apply four bands of parametric EQ and upload Sonarworks calibration profiles. Firmware updates can also be managed through the application, allowing future functionality to be added.

The Sub8 PRO offers Stereo, LFE, and Wide modes for conventional, immersive and full-range applications. Its robust wooden cabinet and protective metal grille ensure durability, with a 5-year warranty available upon product registration.

Fiber-reinforced, paper-based 8” Woofer

Total Peak Amp. Power: 200 W

Calibration options: ADAM Control, SoundID Reference by Sonarworks, Backplate

Frequency Response @ -6 dB: 26 - 300 Hz

Max. SPL at 1 m (Peak): 105 dB SPL

FUTURE PROOF INNOVATIONS

Explore the technology

ADAM Audio products have earned a worldwide reputation for the innovations that we have established in the field of loudspeaker technology. Here you can explore the technology of the Sub8 PRO.
adam-audio-adam-control-software-technology-teaser

ADAM Control Remote Software

The DSP-based functionality of all A Series monitors can be controlled remotely and in real time over ethernet using ADAM Control.
Learn more
adam-audio-a-series-sonarworks-technology-teaser

Automated Room Correction with Sonarworks

ADAM Audio is proud to partner with Sonarworks on an automated room correction solution that runs directly on the DSP of A Series monitors.
Learn more
adam-audio-sub-pro-line-high-performance-woofers-technology-teaser

High-Performance Woofers

The heart of the Sub PRO line is the high-excursion, low-distortion woofer - made from a fiber-reinforced paper material.
Learn more
adam-audio-sub-pro-line-digital-connectivity-technology-teaser

Digital Connectivity

AES3 is a professional standard for transmitting digital audio between interfaces, loudspeakers, and subwoofers.
Learn more
adam-audio-sub-pro-line-amps-and-dsp-technology-teaser

Powerful Amplification & Unfaltering DSP

Sub PRO devices feature a Class D amplifier that drives the woofer in a highly efficient manner at all listening levels.
Learn more
adam-audio-sub-pro-line-fea-bass-port-technology-teaser

FEA-Optimized Bass Port

Finite Element Analysis is a computer-based simulator that was used to model airflow over Sub PRO bass ports.
Learn more
adam-audio-sub-pro-line-multichannel-ready-technology-teaser

Multichannel Ready

Alongside the Sonarworks platform for multichannel calibration, the Sub PRO range offers two operational modes that support immersive audio.
Learn more
adam-audio-sub-pro-line-cabinet-and-grille-technology-teaser

Robust Cabinet & Grille

The Sub PRO line features classic ADAM Audio design with a speckled finish to the bass port and matching baffle curvature throughout.
Learn more
SEE MORE TECHNOLOGIES
GALLERY

Beautiful from every angle

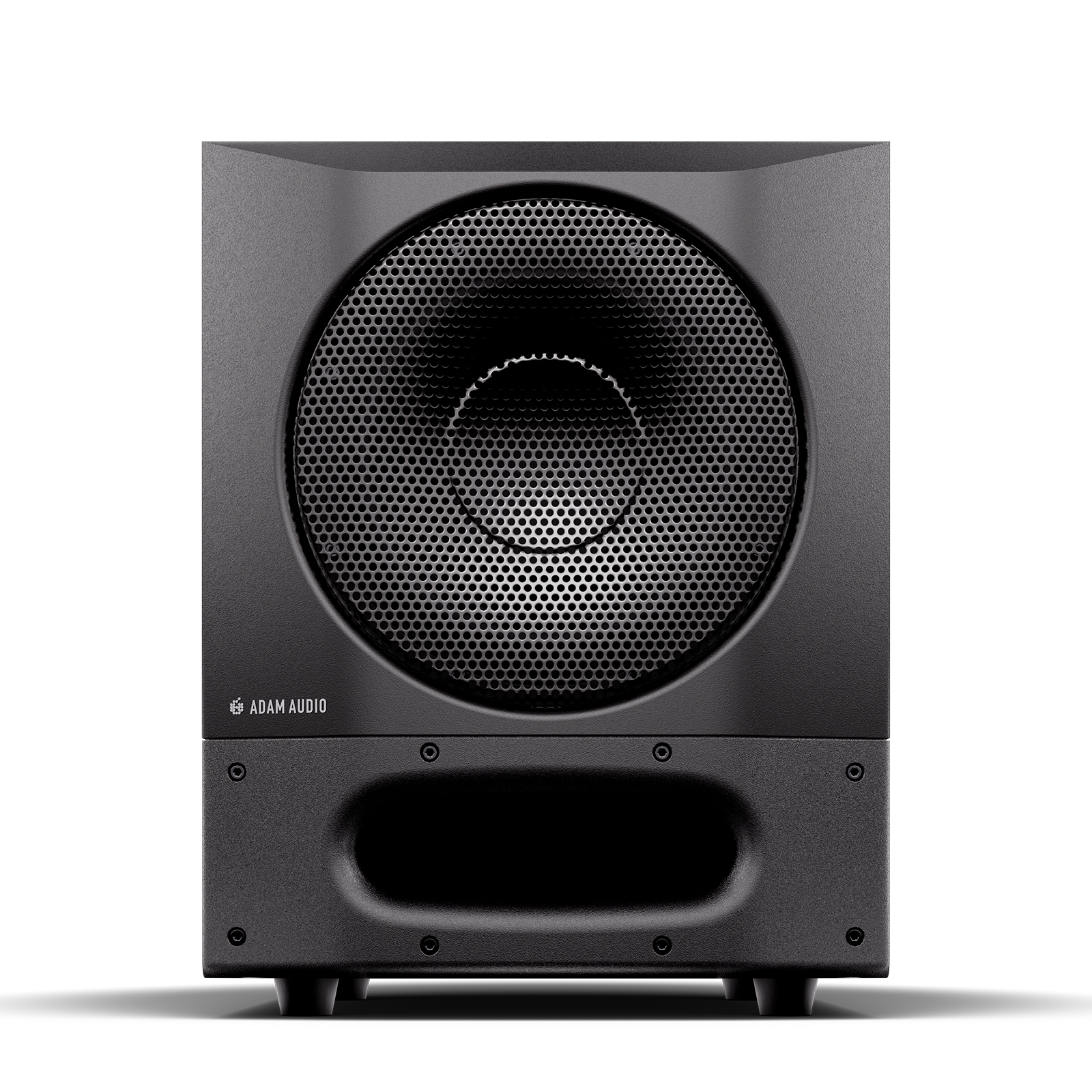

Front View

The FEA-optimised bass port with speckled finish.

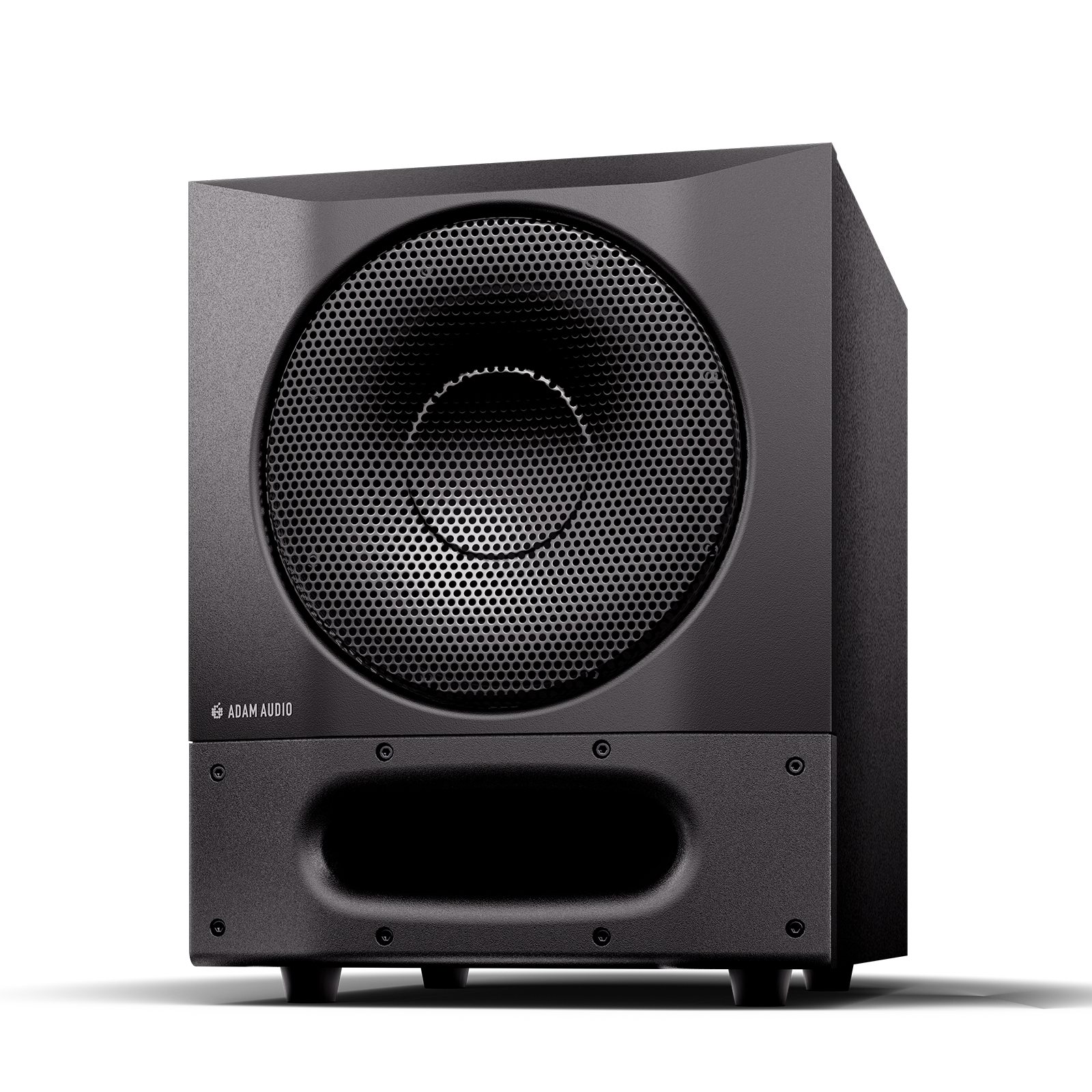

Angled front view [left]

A solid metal grille protects the high-excursion woofer.

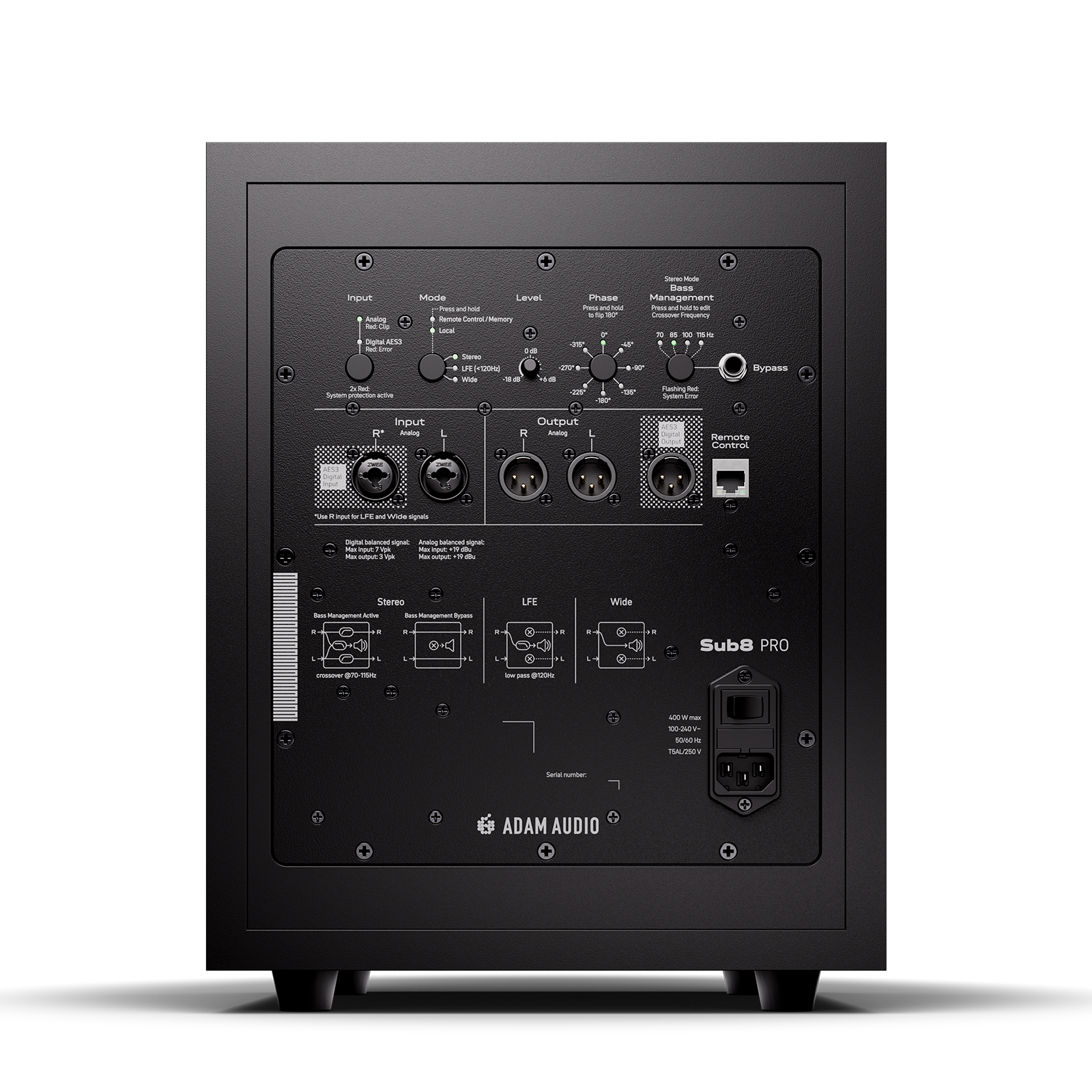

Back View

The backplate houses extensive control options.

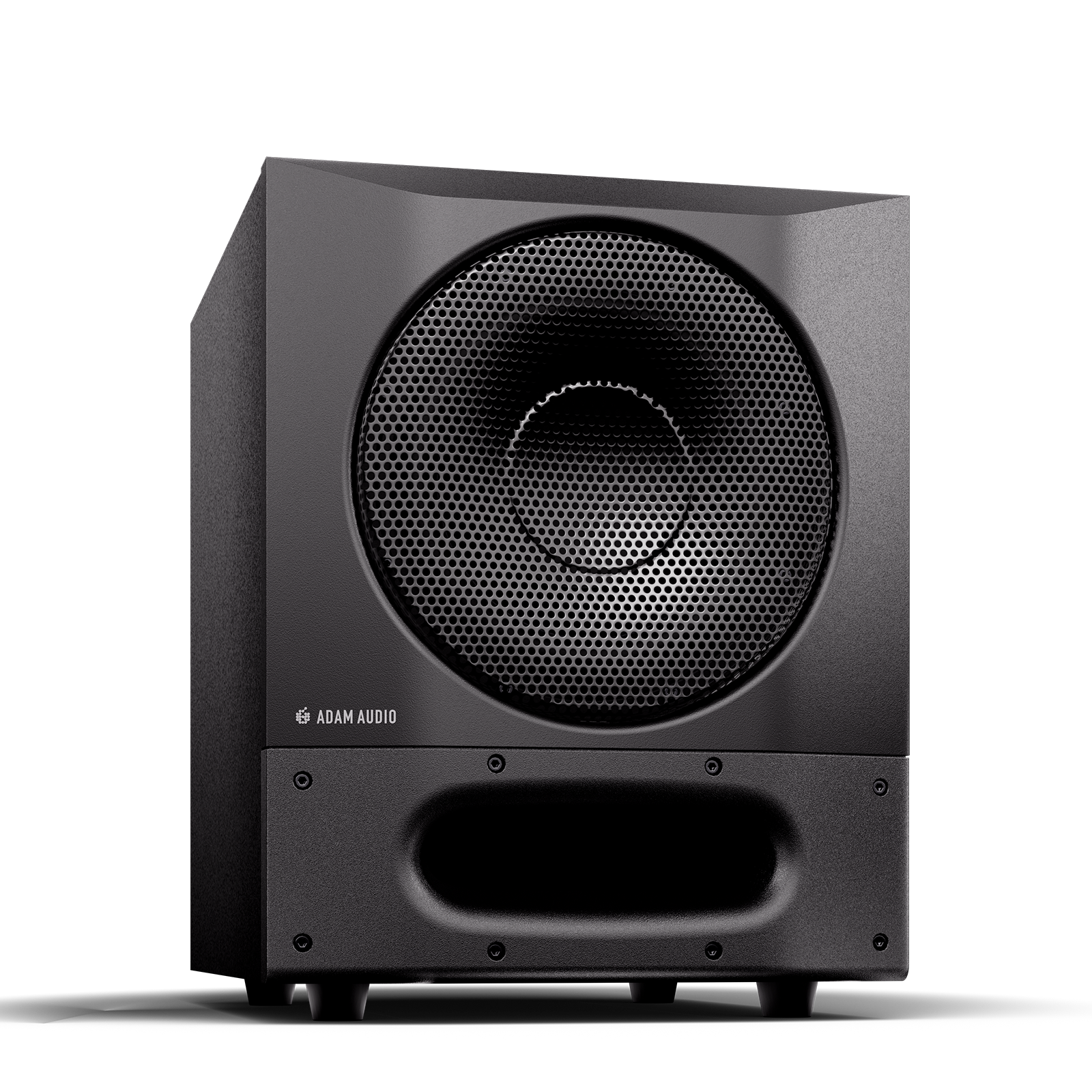

Angled front view [right]

The robust wooden cabinet dampens unwanted resonances.

DSC09706-1
FOCUS ON CREATING

Don't sweat it.

A 5 year warranty is standard across our portfolio of loudspeakers, allowing you to work without worrying about your gear.
LEARN MORE
IN THE DETAILS

Technical Data

View the specifications of the ADAM Audio Sub8 PRO by clicking each drop-down section.

  • General Data

    • Cabinet Design: Front Fire and front ported
    • Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
    • Power consumption (max, standby): 400 W, 2.5 W
    • AC Input Voltage: 100 – 240 V, 50/60 Hz
    • Power Rating: 400 W max.
    • Operating Conditions: -10° C to +40° C (+14° F to +104° F); <75% RH, non-condensing
    • Weight: 15.3 kg (33 lbs 12 oz)
    • Dimensions (Height x Width x Depth): 385 mm x 300 mm x 365 mm (15 1/8″ x 11 6/8″ x 14 3/8″)
    • Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
    • Delivery Contents: Sub8 PRO subwoofer, power cable, Quick Start Guide

  • Audio Connectors

    • Analog Inputs: 2 x XLR / TRS combi
    • Digital Input: XLR AES3
    • Analog Input Impedance: 25 kOhm
    • Digital Input Impedance: 110 Ohm
    • Max. Input Level: +19 dBu
    • Analog Outputs: 2 x XLR
    • Digital Outputs: XLR AES3

  • Amplification

    • Amplifier Type: PWM
    • Peak (10% THD, limiter deactivated): 325 W
    • RMS (1% THD, limiter deactivated): 200 W @ 3 Ohm

  • Control Options [via Network]

    • Networking Connector: RJ45
    • Connection Type: Ethernet
    • Communication Protocol: AES70 / TCP
    • Control Software: ADAM Control (Windows and MacOS available)
    • Advanced Room Adaptation: 4-bands QEQ
    • Third-party calibration compatibility: Sonarworks SoundID Reference

  • Acoustics

    • Frequency Response @ -3 dB: 30 – 228 Hz
    • Frequency Response @ -6 dB: 26 – 300 Hz
    • Crossover Frequencies: 70, 85, 100, 115 Hz (variable via ADAM Control)
    • Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS): 105 dB SPL
    • Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak): 110 dB SPL
    • Max SPL in full space at 1 m with sine bursts (average 25 Hz to 50 Hz) @ 10% THD (RMS): 101 dB SPL
    • Max SPL in full space at 1 m with sine bursts (average 25 Hz to 50 Hz) @ 10% THD (Peak): 104 dB SPL
    • Max peak SPL in full space at 1 m with IEC-weighted noise (full range): 112 dB SPL
    • Max peak SPL in full space at 1 m with IEC-weighted noise (85 Hz bass managed) 113 dB SPL
    • Dolby DARDT max SPL in full space (full range bass managed): 112 dB SPL

  • Driver

    • Basket Diameter: 8″
    • Voice Coil Diameter: 1 3/8″ (35 mm)
    • Cone Material: Paper, fiber-reinforced

  • Signal Processing

    • AD converter: 24-bit (via XLR/TRS inputs)
    • Internal sample rate: 96 kHz
    • Delay range and resolution: 0 – 10 ms, 32-bit
    • Protection: Independent peak and thermo limiters, over current protection, over temperature protection, under voltage protection

  • Control Options [via Backplate]

    • Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting, full space
    • Level: -18 dB to +6 dB
    • Input Selection: Analog, digital
    • Phase: 0°, -45°, -90°, 135°, 180°, -225°, -270°, -315°
    • Bass Management: 70, 85, 100, 115 Hz
    • Operational Modes: Remote Control, Local / Stereo, LFE (<120Hz), Wide
    • Bypass: Yes, via footswitch (not included) and TRS connection (latched)

SEE WHAT YOU HEAR

Measurement Data

Here you can view the results of common loudspeaker measurements for the ADAM Audio Sub8 PRO.

MORE TO DISCOVER

Additional Information

Read up on the user manual, the quick start guide or take a look at the product sheet.
