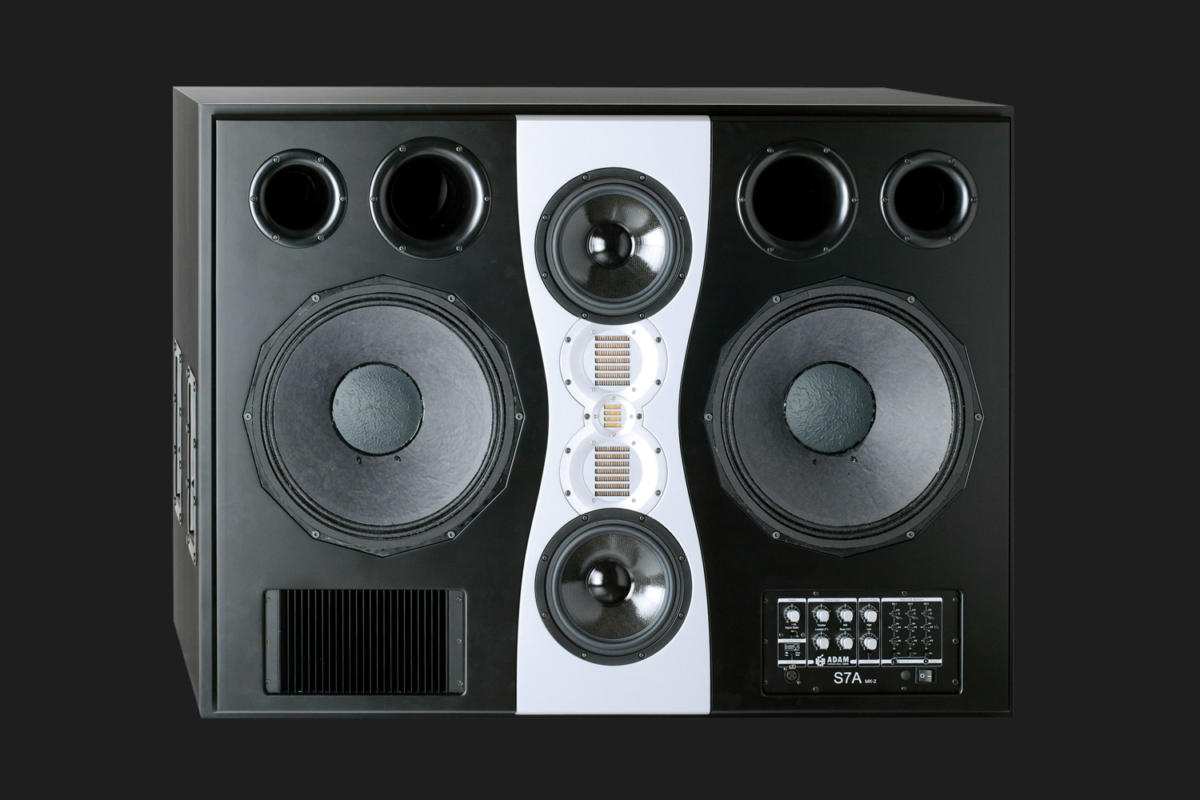

ADAM Audio S7A Mk2 Main Monitor

ADAM S7A MK2

The S6X and S7A MK2 main monitors are designed for large control rooms and film studios. They use a symmetrical concept to increase the realistic reproduction of ADAM monitors to higher sound pressure levels. ADAM Audio has avoided the typical overloading of the bass range that can often be found in main monitors. A wide horizontal radiation characteristic and moderate vertical beaming are crucial factors to minimize the impact of ceiling and floor reflections and achieve neutral sound reproduction at high volumes.

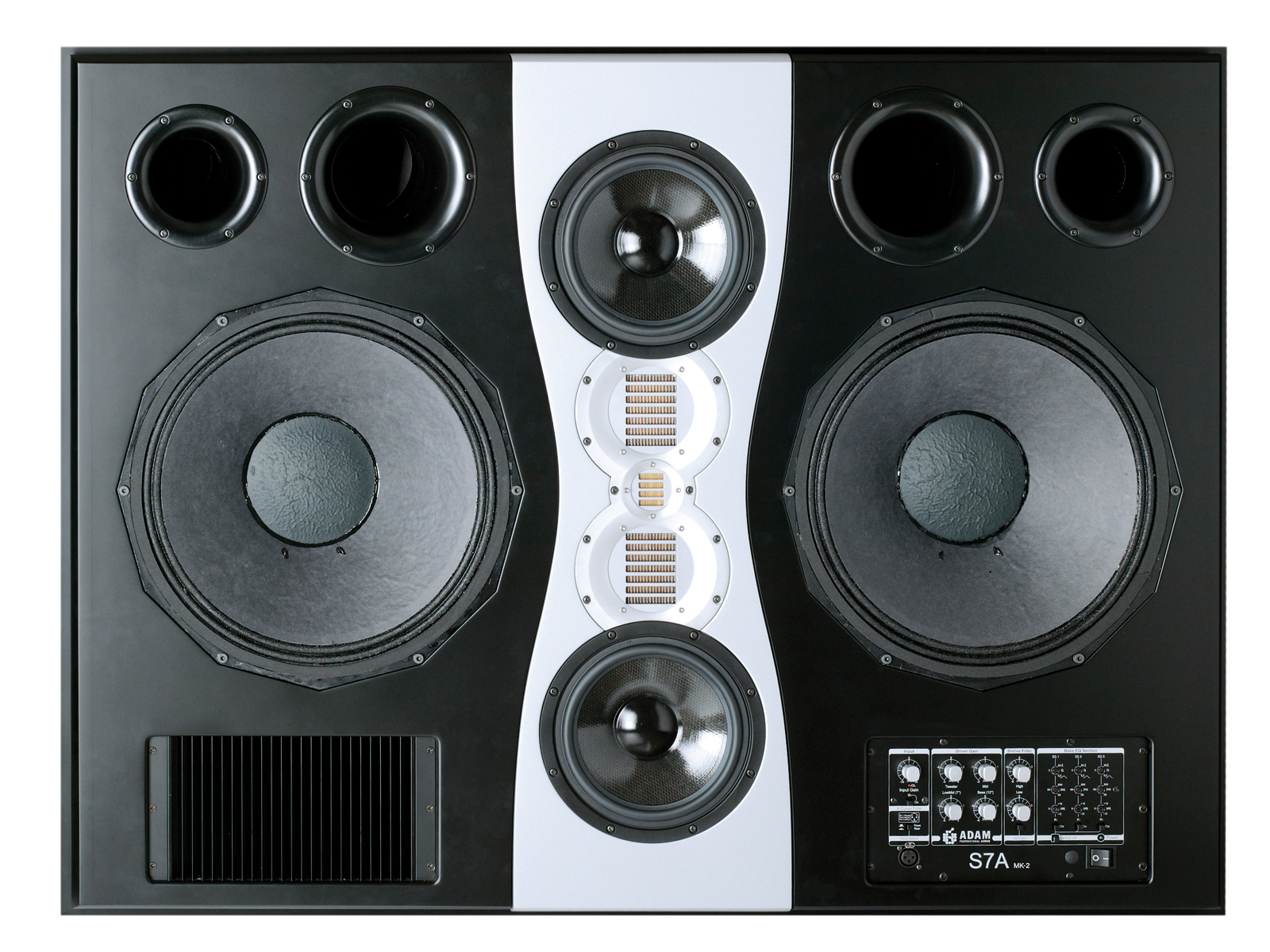

Extended D’Appolito design

A total of seven individual speakers were arrayed so that gradual transitions could be made possible given the size of the cabinet. In addition, we chose a horizontal symmetry that can be described as an extended D’Appolito configuration. This kind of design combined with suitable transition frequencies and filter slopes results in radiation patterns that lead to very consistent reproduction characteristics in the horizontal center position. At the same time, vertical dispersion is reduced so that reflections from the ceiling, floor or mixing console are greatly reduced. Thus, so called ‘early reflections’ have less chance to interfere, which leads to significantly better stereo imaging and a more three-dimensional sound.

Impulse Coupling

Further progress in development was achieved by the use of Alucore® panels, an extra firm component material with an aluminum honeycomb core. All drivers of the S6X and S7A Mk2 are mounted on such panels, which considerably improves mechanical coupling between the drivers and the cabinet.

Amplification

An active-built complex, large top-class monitor has not yet been achieved because of the challenge presented by the heat generation of the high power amplifiers used in this type of device. In recent years, PWM (Pulse Width Modulation) amplifier technology had significantly improved in that only a fifth of the generated heat has to be dissipated – a real breakthrough in terms of reliability and durability. This allows the S6X and the S7A Mk2 to be flush mounted into the studio walls, since all the heat is emitted through the front of the cabinet and the heat sink temperatures remain moderate. Together with the built-in protection circuits the low, constant temperatures of these amplifiers result in reliable performance not possible with traditional AB amplifiers.

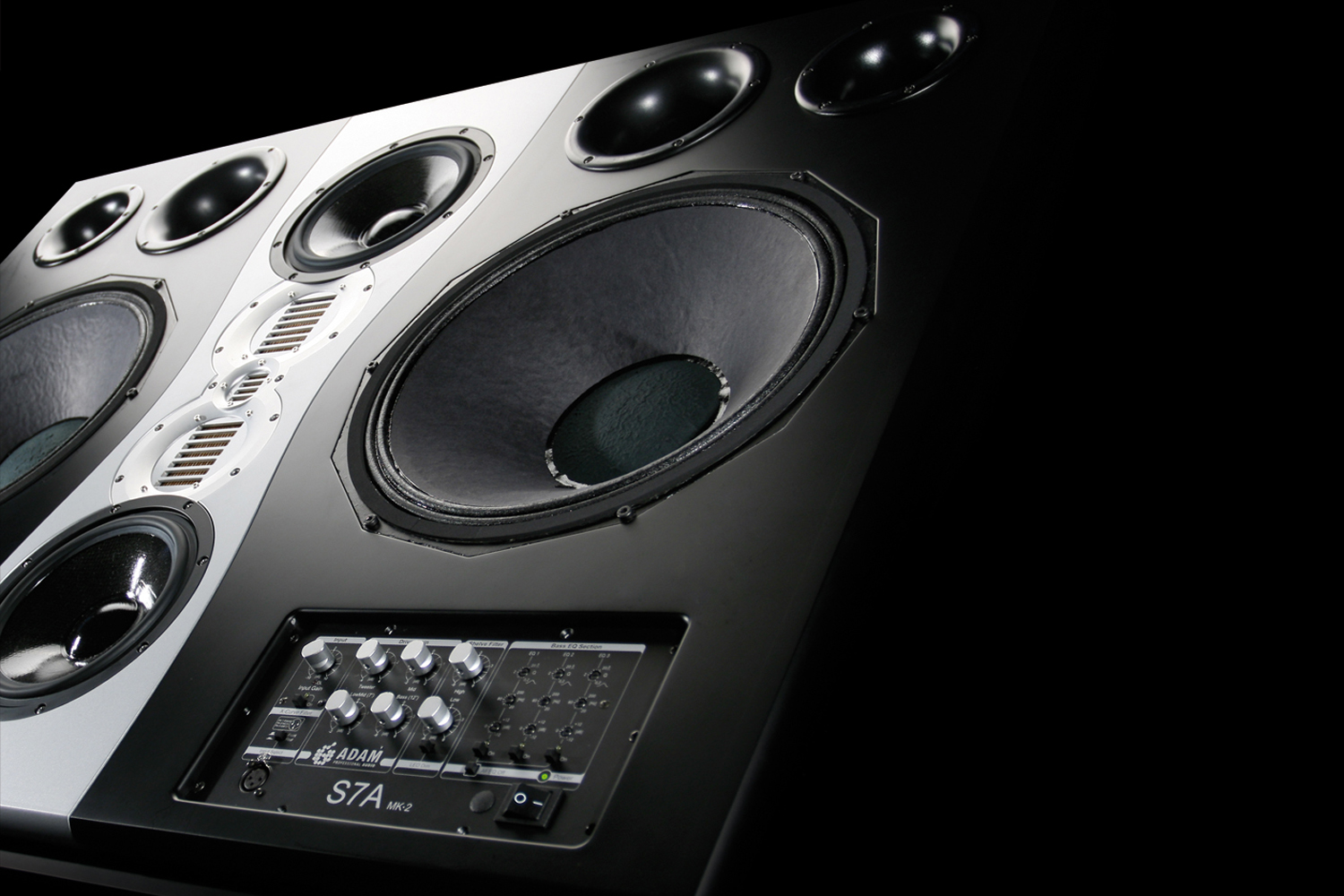

Control panel

In addition to the input sensitivity that can be adapted in the range of ±10 dB, there are four other level controls that affect the individual amplifier modules. Shelving filters at both ends of the frequency spectrum and three fully parametric equalizers help compensate for standing waves in the control room. The EQs can be inserted separately or grouped so their effect can be directly evaluated.

In large film score mixing rooms, there may be a need to simulate theater sound. Based on the ISO 2969 standard, the Dolby® X-Curve is used to achieve this. This filter engages a 3 dB per octave roll-off starting at 2 kHz. Below the front input jack is a selector switch that activates this filter, eliminating the need for external processing during the film mix. In addition to the rear input there is an additional switchable XLR input on the front panel, allowing work with the monitor regardless of set-up.

S7A MK2 – the benchmark in Professional Monitoring

The S7A MK2 is the larger version of the S6X and consequently one of the most impressive studio monitors. With a total of 1500 Watt onboard amplification power this monitor reaches SPL peaks of 138dB per pair at a distance of 1 meter. The larger woofer diaphragms provide more bass volume even at frequencies as low as 20Hz.

For the time being, we feel the S7A Mk2 is the benchmark of what is possible in the field of professional monitoring. It combines all of the ADAM innovations in the areas of transducer technology, PWM amplification, more detailed control options and the best materials available with an unmatched level of power and performance. This combination of maximum volume with the utmost precision in all sonic areas could only result in one thing: the ultimate reference in professional monitoring. The S7A MK2 is the result of ADAM’s quest to offer the best possible active studio monitor available today.

German Handmade X-ART Tweeter & X-ART Midrange

2 x 15“ and 2 x 9" Woofer

Amp. Power RMS / Music: 2750 W / 3850 W

Frequency Response: 20Hz - 50 kHz

Max. SPL per pair at 1 m: ≥138 dB

STATE OF THE ART TECHNOLOGY

ADAM Audio monitors have earned a worldwide reputation as the preeminent tool for sound engineers based on technological innovations that we’ve established in the field of loudspeaker technology.

Approved BY OUR PROFESSIONAL COMMUNITY

„ADAM is pushing the standard for transparency in a monitor system to new levels."
Pro Sound News

ADAM S7A Mk2 in use

Press Reviews

Pro Sound News
Download
PDF (108 KB)

Features & Benefits

Product Feature
Benefit to the customer
X-ART tweeter, handmade in Berlin
  • Allows longer operation with fewer signs of fatigue
  • Their breakup is prevented by the folded diaphragms, distortions are effectively reduced to a minimum
  • Advanced dynamic range due to acoustically effective diaphragm surface that is 2.5 times bigger (compared to a classic tweeter according to the piston principle)
The air velocity ratio of 4:1 during the sound generation by folded X-ART membrane

Direct, fast response in the high-range even with complex transients

Ultra-light but extremely dimensionally stable woofer material

Excellent transient response even at high sound levels without breakup of the diaphragm

4-way system with 2 x 15" woofer and 2 x 9” midrange

Very high resolution of the stereo image and extremely wide stereo base

Spacious bass reflex ports on the front

Bass reproduction with very low compression

Highly efficient PWM amplifiers

Low-distortion amplification at both low and high volume levels

Linear frequency response of 20 Hz to 50 kHz

Unbiased reproduction in a wide frequency band

Maximum peak sound pressure per pair in 1 m ≥ 138 dB

Powerful, compression-free sound reproduction even at very high sound levels

Sophisticated room acoustic adjustments

Allows optimal adaptation to acoustically difficult listening environments or individual preferences

Analog XLR input

Optimized for balanced line signals

Directional sound radiation in vertical plane

Reduction of early reflections on the surfaces of, e.g. mixing consoles, desks, etc.

2 years warranty with optional extension to 3 years with the registration of the product

Full repair service if required for 5 years

Technical Data

Woofer

Number2
Basket Ø15" (380 mm)
Voice Coil Ø4" (100 mm)
Cone MaterialPaper

Midrange (cone)

Number2
Basket Ø9" (228 mm)
Voice Coil Ø2" (50 mm)
Cone MaterialHexaCone

Midrange

Number2
TypeX-ART
Diaphragm Area2 x 26 inch² (16800 mm²)
Equiv. Diaphragm Ø2 x 5.5" (146 mm)
Velocity Transform Ratio3.5:1
Diaphragm Weight0.7 g

Tweeter

Number1
TypeX-ART
Diaphragm Area4 inch² (2420 mm²)
Equiv. Diaphragm Ø2" (56 mm)
Velocity Transform Ratio4:1
Diaphragm Weight0.17 g

Built-in Amplifiers

Woofer1
TypePWM
Amp. Power RMS / Music1000 W / 1400 W
Woofer1
TypePWM
Amp. Power RMS / Music500 W / 700 W
Midrange (cone)1
TypePWM
Amp. Power RMS / Music250 W / 350 W
Midrange (cone)1
TypePWM
Amp. Power RMS / Music500 W / 700 W
Midrange2
TypePWM
Amp. Power RMS / Music2 x 250 W / 350 W
Tweeter1
TypePWM
Amp. Power RMS / Music250 W / 350 W

Control Panel

Input Sensitivity±10 dB
EQ 80 Hz (Q / Hz / Level)3 x 0.2 - 20 / 20 - 200 / ±12 dB
High Shelf EQ > 6 kHz±6 dB
Low Shelf EQ < 150 Hz±6 dB
Sub Gain±4 dB
Mid-Woofer Level±2 dB
Mid Level±2 dB
Tweeter Gain±4 dB

Input Connectors

AnalogXLR
LocationFront / Rear switchable

General Data

X-Curve FilterYes
Frequency Response20 Hz - 50 kHz
THD 90 dB / 1 m > 100 Hz≤0.5 %
Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m≥128 dB
Max. SPL per pair at 1 m≥138 dB
Crossover Frequencies65 / 800 / 3100 Hz
Input Impedance10 kOhm
PanelFront
Weight575.4 lb (261 kg)
Magnetically ShieldedNo
Height x Width x Depth35.5" (900 mm) x 47" (1200 mm) x 26.5" (670 mm)
Warranty5 years (2 years warranty plus 3 years optional with product registration)
Delivery ContentsPower cord, manual
