ADAM Audio Classic Subwoofer SW260

Classic SW260 MK3

Subwoofer

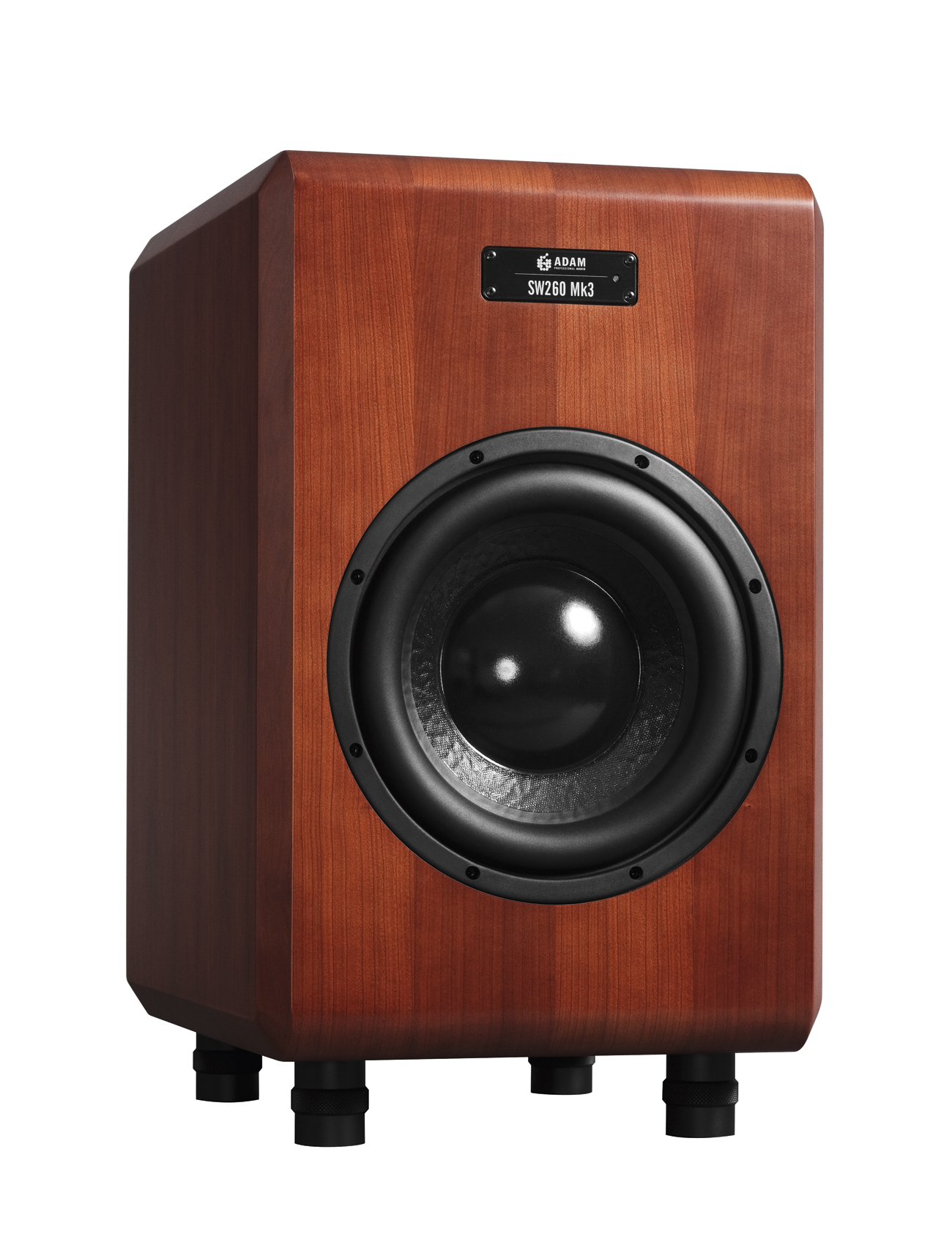

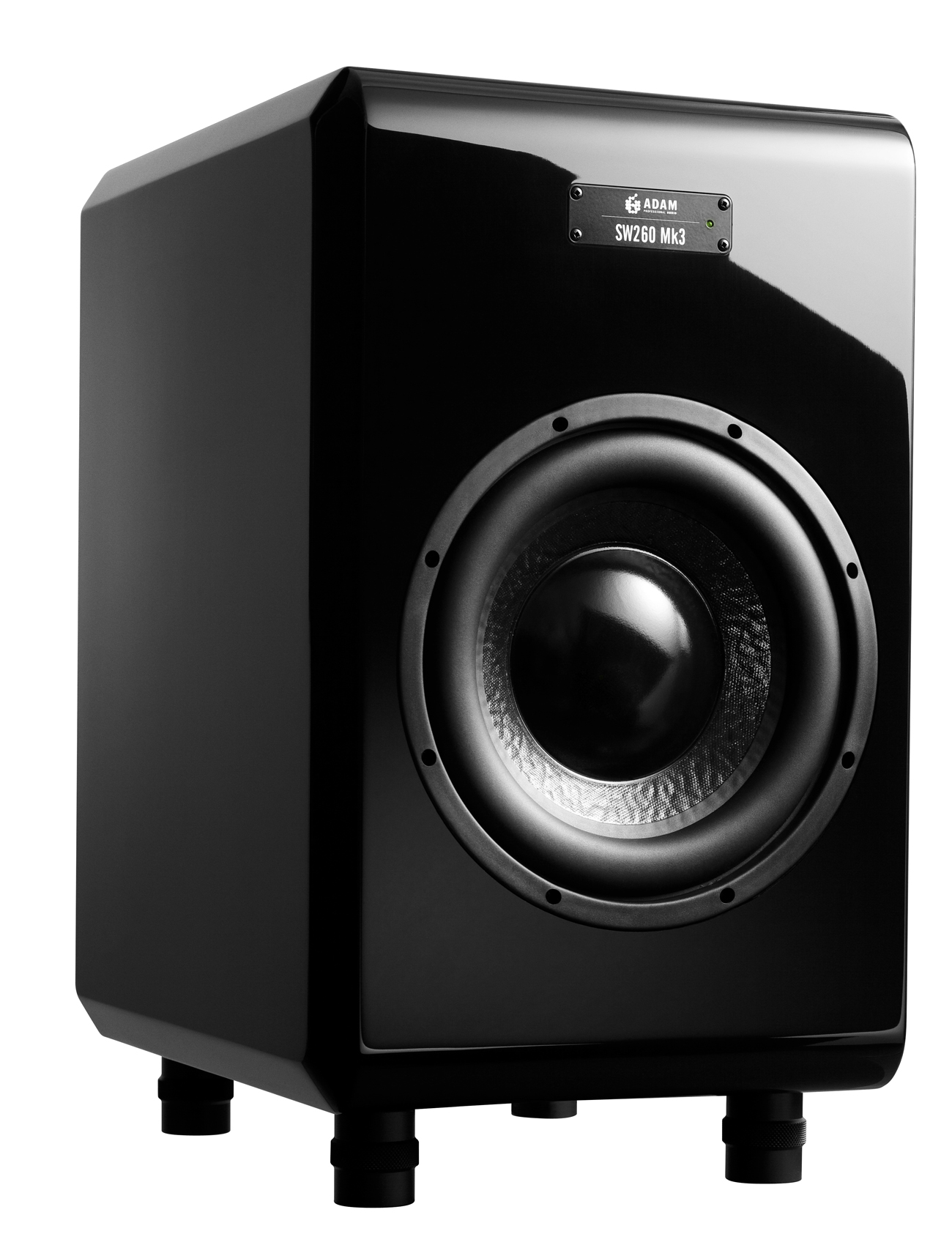

ADAM Classic SW260 MK3

It is the task of the SW260 to expand both power and precision of the bass area of a stereo system as well as part of a bigger multichannel system (e.g. 5.1). It has been designed as a perfect match for the other members of the Classic family. The subwoofer, driven by a highly efficient 200W (RMS) Class D amplifier, expands the frequency of any system down to 25Hz.

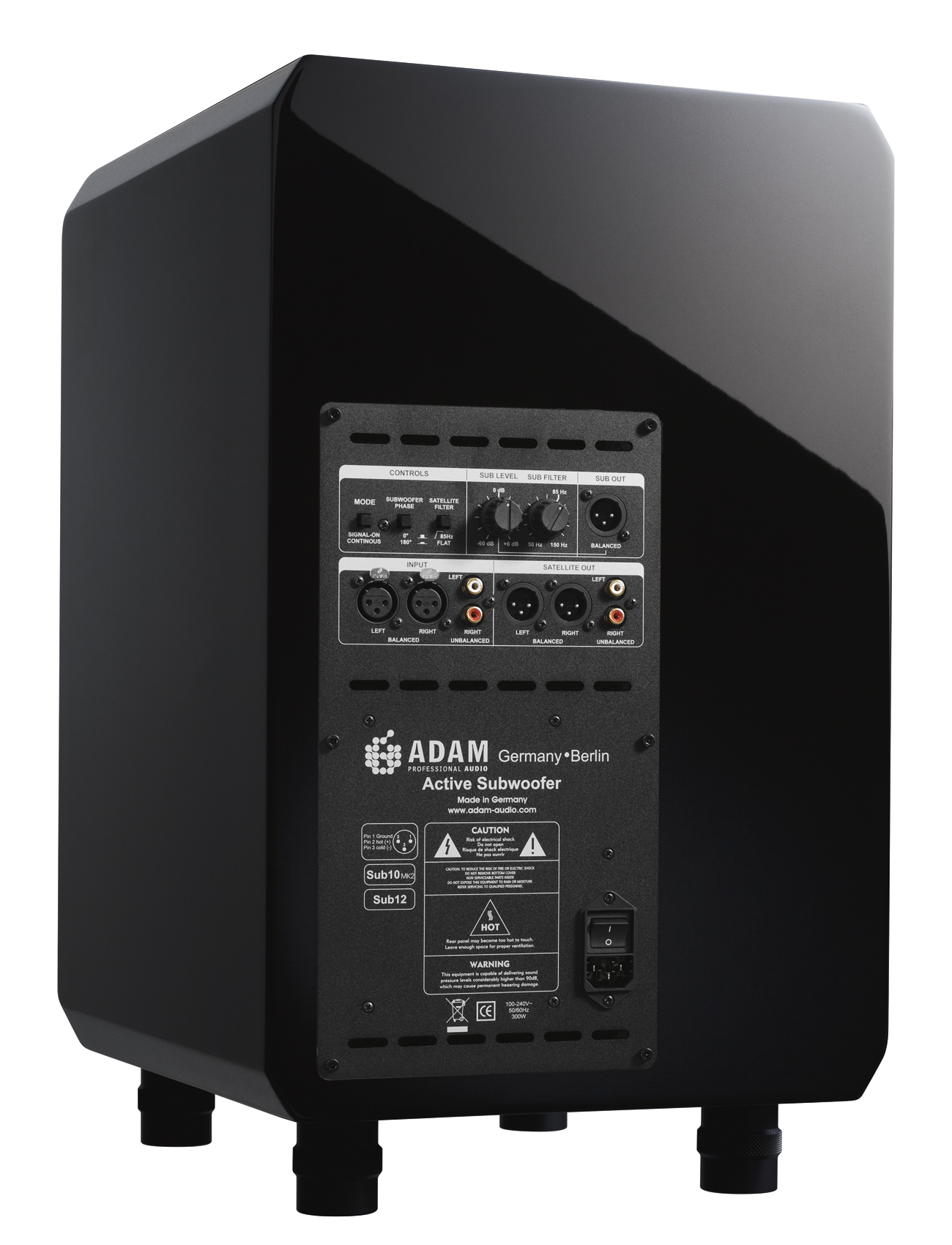

Numerous controls ensure that the subwoofer can be adapted to any system and needs. For example, there is a level control, a phase switch (±180°), a variable upper barrier frequency (50-150Hz), and a switchable 85Hz high pass filter for satellite output.

10 “ Subwoofer

Frequency response: 25 Hz - 150 Hz

Built in amplifier with 200 W / 300 W

Crossover frequencies: 50 - 150 Hz

Weight: 21 kg (46.3 lb)

Dimensions H x W x D (mm): 500 mm x 300 x 400

Approved BY OUR PROFESSIONAL COMMUNITY

"The sound the SW260 was characterized through striking precision and detail yet at the same time offering uncanny depth. This is a fully-developed generalist with a lot of reserves."
stereoplay

Press Reviews

Stereoplay [English]
Download
PDF (271 KB)

Technical Data

Subwoofer

Number1
Basket Ø10" (254 mm)
Cone MaterialPaper

Built-in Amplifiers

Subwoofer1
Amp. Power RMS / Music200 W / 300 W

Control Panel

Input Sensitivity-60 to +6 dB

General Data

Frequency Response25 Hz - 150 Hz
Crossover Frequencies50 - 150 Hz
Input Impedance10 kOhm
Weight46.3 lb (21 kg)
Height x Width x Depth19.5" (500 mm) x 12" (300 mm) x 15.5" (400 mm)
Warranty5 years

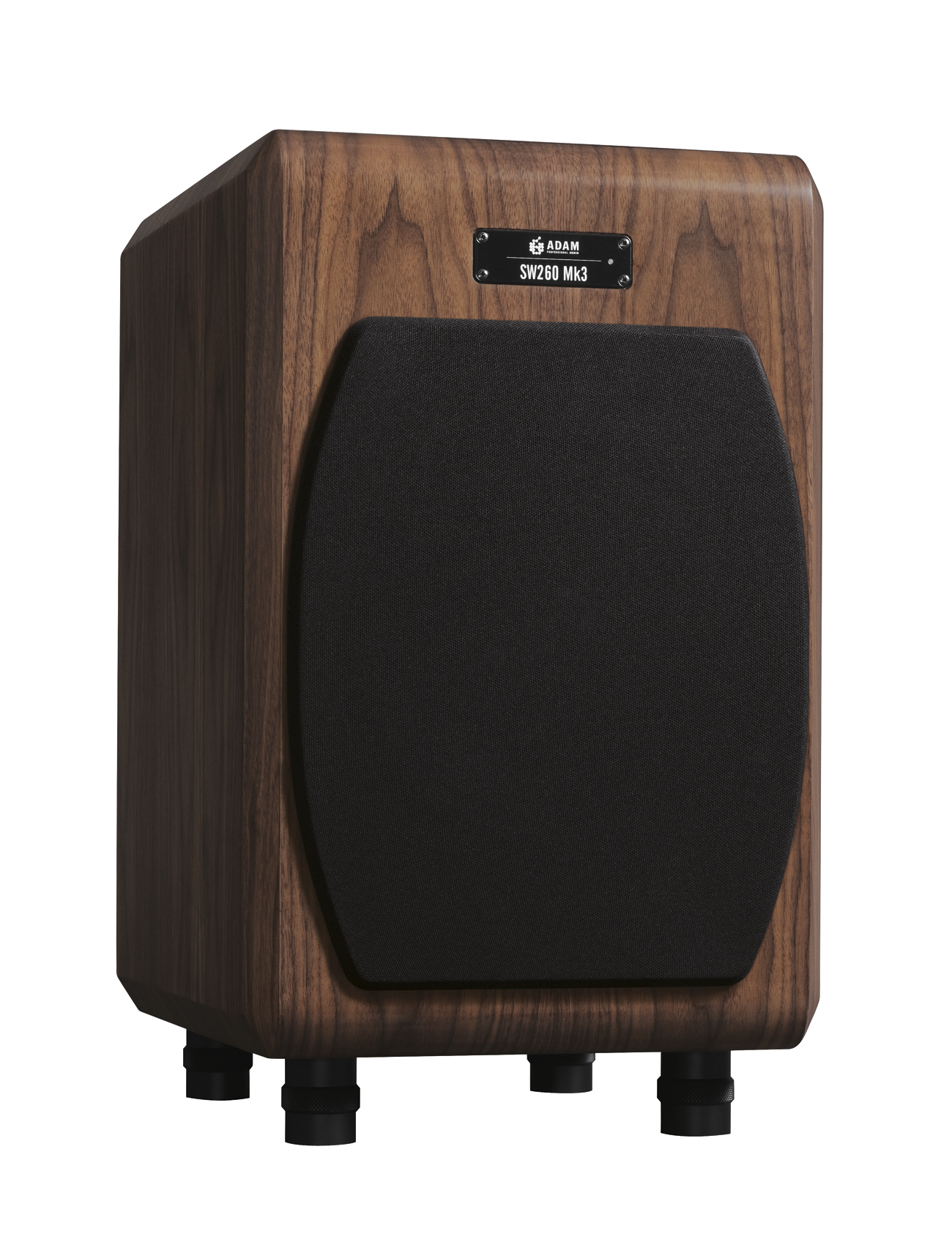

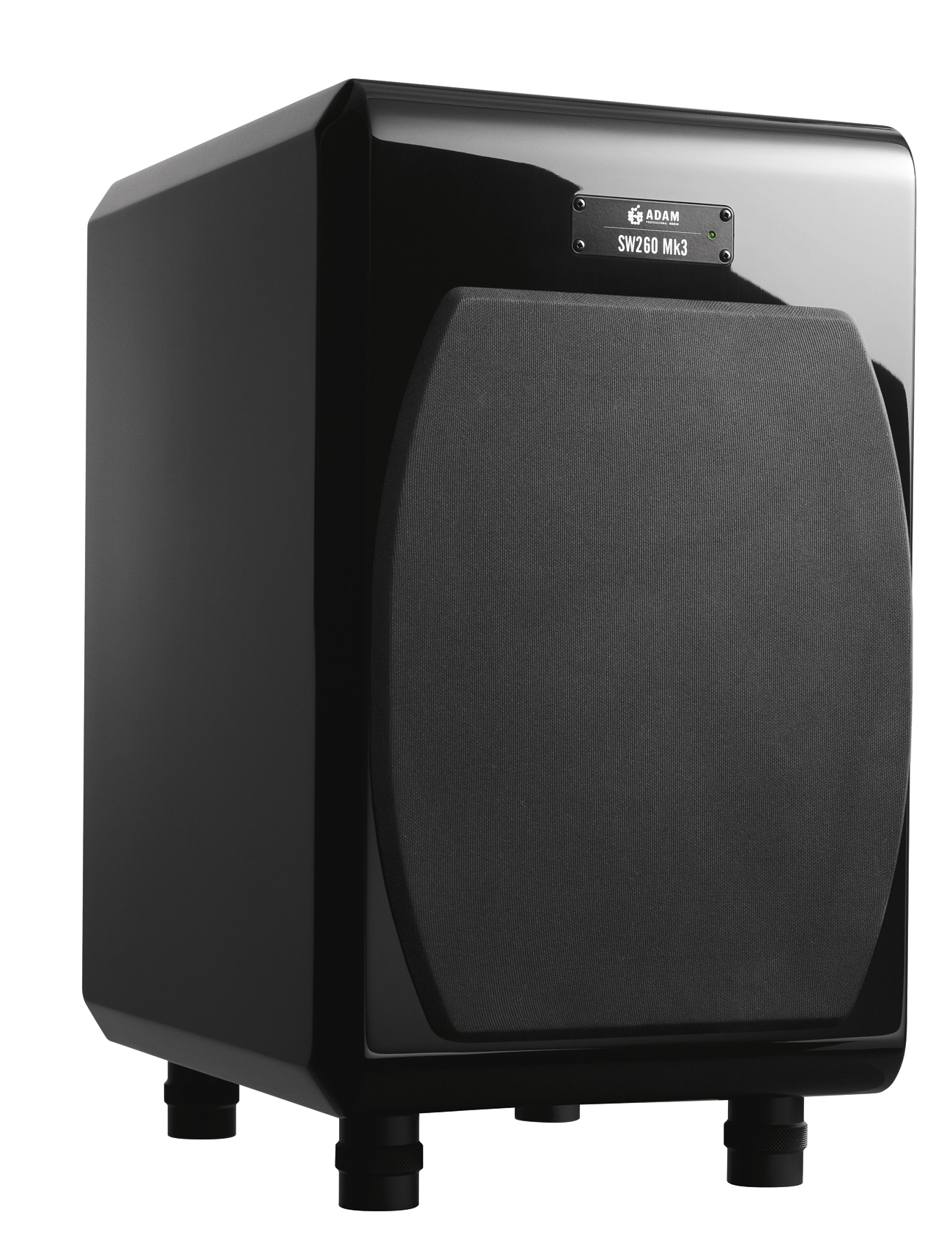

Delivery ContentsFront cover, power cord, manual
