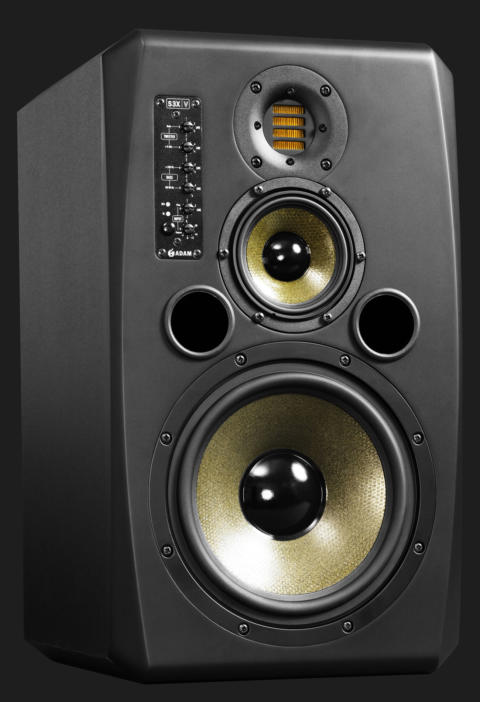

| Number | 1 |
| Basket Ø | 9" (228 mm) |
| Voice coil Ø | 2" (50 mm) |
| Cone material | HexaCone |
| Number | 1 |
| Basket Ø | 4.5" (116 mm) |
| Voice coil Ø | 1" (25 mm) |
| Cone material | HexaCone |
| Number | 1 |
| Type | X-ART |
| Diaphragm area | 4 inch² (2420 mm²) |
| Equiv. Diaphragm Ø | 2" (56 mm) |
| Velocity transform ratio | 4:1 |
| Diaphragm weight | 0.17 g |
| Woofer | 1 |
| Type | PWM |
| Amp. power RMS / music | 250 W / 350 W |
| Midrange | 1 |
| Type | PWM |
| Amp. power RMS / music | 250 W / 350 W |
| Tweeter | 1 |
| Type | A/B |
| Amp. power RMS / music | 50 W / 100 W |
| Input Sensitivity (coarse) | -20 to +8 dB (4 dB steps) |
| Input Sensitivity (fine) | -1.5 to +2 dB (0.5 dB steps) |
| EQ 80 Hz | 0 to +6 dB (1 dB steps) |
| High Shelf EQ > 6 kHz | ±4 dB (1 dB steps) |
| Low Shelf EQ < 150 Hz | ±4 dB (1 dB steps) |
| Tweeter gain | ±2 dB (0.5 dB steps) |

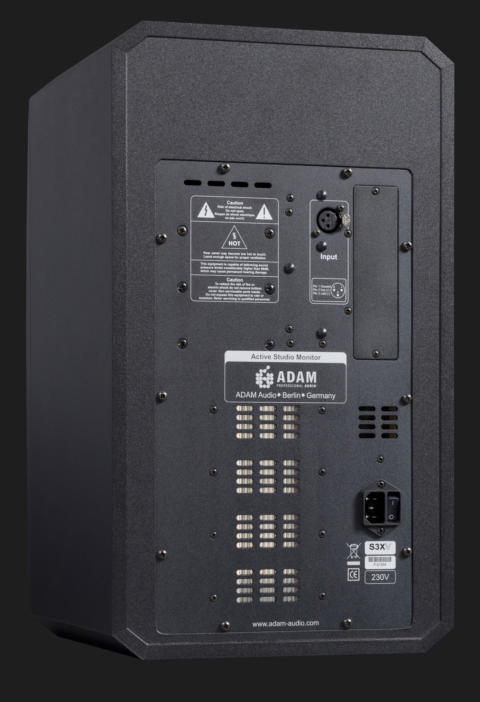

| Analog | XLR |
| Digital (optional) | AES/EBU / SPDIF / word clock |
| Panel | Front |
| Frequency response | 32 Hz - 50 kHz |
| THD > 80 Hz | ≤0.6 % |
| Long term output | ≥114 dB |
| Max. peak | ≥124 dB |
| Crossover frequencies | 350 / 2800 Hz |
| Input impedance | 10 KOhm |
| Weight | 34 lb (15,4 kg) |
| Magnetically shielded | Optional |
| Height x Width x Depth | 19" (485 mm) x 11" (281 mm) x 11.5" (295 mm) |
| Warranty | 5 Years |
