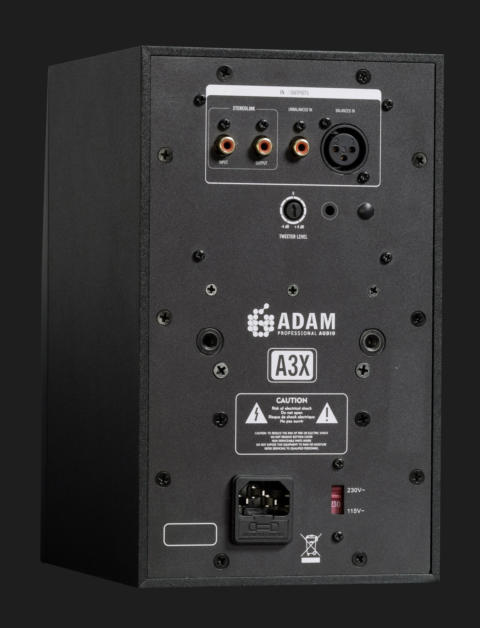

A3XNearfield Monitor
Archived Product
Press Reviews
Hörerlebnis [German]
Download
PDF (136 KB)
audio fanzine.com [English]
Download
PDF (121 KB)
Recording Magazine [English]
Download
PDF (110 KB)
Pro Audio Review [English]
Download
PDF (108 KB)
Tape Op#79 [English]
Download
PDF (1.2 MB)
Interface [Dutch]
Download
PDF (122 KB)
Future Music [English]
Download
PDF (2.3 MB)
MusicTech [English]
Download
PDF (1.2 MB)
Professional Audio [German]
Download
PDF (667 KB)
Harmony Central [English]
Download
PDF (114 KB)
Monitor Scandinavia Mag [Danish]
Download
PDF (2.3 MB)
Technical Data
Woofer
| Number | 1 |
| Basket Ø | 4.5" (120 mm) |
| Voice Coil Ø | 1" (25 mm) |
| Cone Material | Carbon Fiber |
Tweeter
| Number | 1 |
| Type | X-ART |
| Diaphragm Area | 4 inch² (2420 mm²) |
| Equiv. Diaphragm Ø | 2" (56 mm) |
| Velocity Transform Ratio | 4:1 |
| Diaphragm Weight | 0.17 g |
Built-in Amplifiers
| Woofer | 1 |
| Type | A/B |
| Amp. Power RMS / Music | 25 W / 40 W |
| Tweeter | 1 |
| Type | A/B |
| Amp. Power RMS / Music | 25 W / 40 W |
Control Options
| Input Sensitivity | -∞ to +14 dB |
| Tweeter Gain | ±4 dB |
Input Connectors
| Analog | XLR / RCA |
General Data
| Frequency Response | 60 Hz - 50 kHz (-10 dB) |
| THD 90 dB / 1 m > 100 Hz | ≤0.8 % |
| Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m | ≥98 dB |
| Max. SPL per pair at 1 m | ≥106 dB |
| Crossover Frequencies | 2.8 kHz |
| Input Impedance | 10 kOhm |
| Panel | Front |
| Stereolink | Yes |
| Weight | 10.1 lb (4,6 kg) |
| Magnetically Shielded | No |
| Height x Width x Depth | 10" (252 mm) x 6" (150 mm) x 7.5" (185 mm) |
| Warranty | 5 years (2 years warranty plus 3 years optional with product registration) |
| Delivery Contents | Cinch-cable, power cord, manual |
