ADAM Audio Sub15 Subwoofer

Sub15

Subwoofer

ADAM Sub15

The Sub15 is an extremely powerful subwoofer capable of extending the frequency range of main and midfield monitors down to 20Hz. The sturdy 15″ woofer is made of an exceptionally rigid aluminum membrane and is driven by two powerful magnets and a 100mm voice coil. With 1000 Watts (RMS) power capability, the PWM amplifier has an efficiency factor of nearly 90%. With these performance features, the Sub15 is easily capable of handling critical musical passages with intense and sudden bass peaks without showing signs of distortion or overheating. The downward firing bass port has been specially designed with ample dimensions and rounded edges to cancel any port noise.

In order to adjust the sound of the Sub15 to different room situations or individual taste, we have implemented several controls including one for volume (-60dB to +6dB) and one for the crossover frequency (50Hz – 150Hz). The satellite speakers can either be driven full range or high pass filtered at 85Hz. This allows the Sub15 to be easily integrated into a Dolby surround setup. Unfavorable phase relationships between the satellites and the subwoofer, particularly in the crossover frequency range, can be easily controlled with the supplied phase reverse switch.

The Sub15 is also very flexible when it comes to connectivity: There are balanced (XLR) and unbalanced (RCA) input/output connectors to be found on the rear of the subwoofer.

The Sub15 combines excellent transient response capability with an impressive low frequency performance to enable a genuinely musical reproduction experience. With a high and undistorted sound pressure output of 120dB maximum SPL at one meter, the Sub15 makes the perfect subwoofer for mid-sized and larger control rooms.

15.5“ Subwoofer (aluminium)

Amp. Power RMS / Music: 1000 W / 1200 W

Frequency Response: 20 Hz - 150 Hz

Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m: ≥120 db

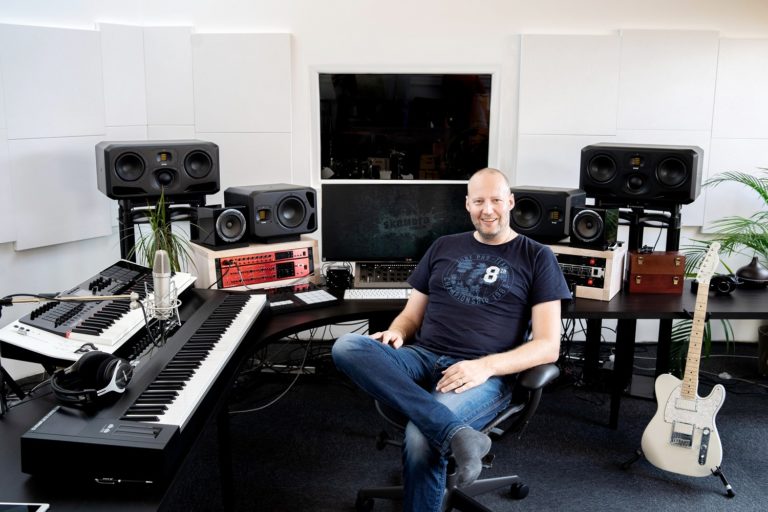

ADAM Sub15 in use

Features & Benefits

Product Feature
Benefit to the customer
Linear bass reproduction down to 20 Hz

Ideal addition to midfield and main monitors

Maximum Peak sound pressure in 1 m ≥ 120 dB

Powerful, compression-free sound reproduction even at very high sound levels

High efficiency PWM amplifier

Low-distortion amplification at both low and high volume levels

Special 15" woofer with aluminum diaphragm

Unrestricted bass reproduction for low-fatigue operation even at high volumes

Additional sub output

Allows building a (double) bass array

Downward working bass reflex tube with generous dimensions and corresponding rounding

Prevention of air turbulence noise

Upper cut-off frequency is selectable between 50 - 150 Hz

Allows optimal adaptation of the total system on the bass performance of the satellites

Connectable high-pass filter for the satellite outputs, which blocks signals below 85 Hz
  • Dolby®- Fair reproduction of film sound
  • Discharging the satellites from the low frequencies
2 years warranty with optional extension to 3 years with the registration of the product

Full repair service if required for 5 years

Technical Data

Subwoofer

Number1
Basket Ø15.5" (390 mm)
Voice Coil Ø4" (100 mm)
Cone MaterialAluminum

Built-in Amplifiers

Subwoofer1
TypePWM
Amp. Power RMS / Music1000 W / 1200 W

Input Connectors

AnalogXLR / RCA

General Data

Frequency Response20 Hz - 150 Hz
Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m≥120 dB
Crossover Frequencies50 - 150 Hz
Height x Width x Depth25" (635 mm) x 18.5" (470 mm) x 20.5" (525 mm)
Warranty5 years (2 years warranty plus 3 years optional with product registration)
Delivery ContentsPower cord, manual
