Sub10 PRO
A compact subwoofer delivering intelligent bass, feature-rich DSP technology, and an industry-first Sonarworks integration.
Buy nowRediscover Bass

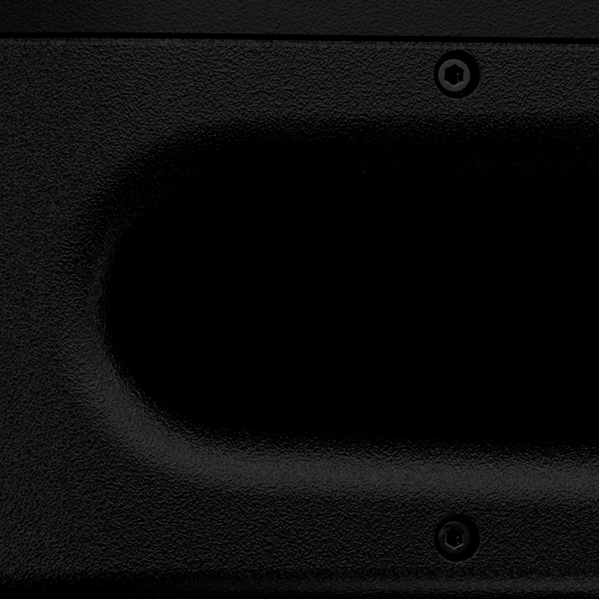

The Sub10 PRO combines advanced DSP, powerful low-frequency audio reproduction and network-based calibration for stereo and multichannel monitoring systems. Its high-excursion 10” woofer and Class D amplifier deliver plentiful SPLs with minimal distortion thanks to the FEA-optimized bass port.

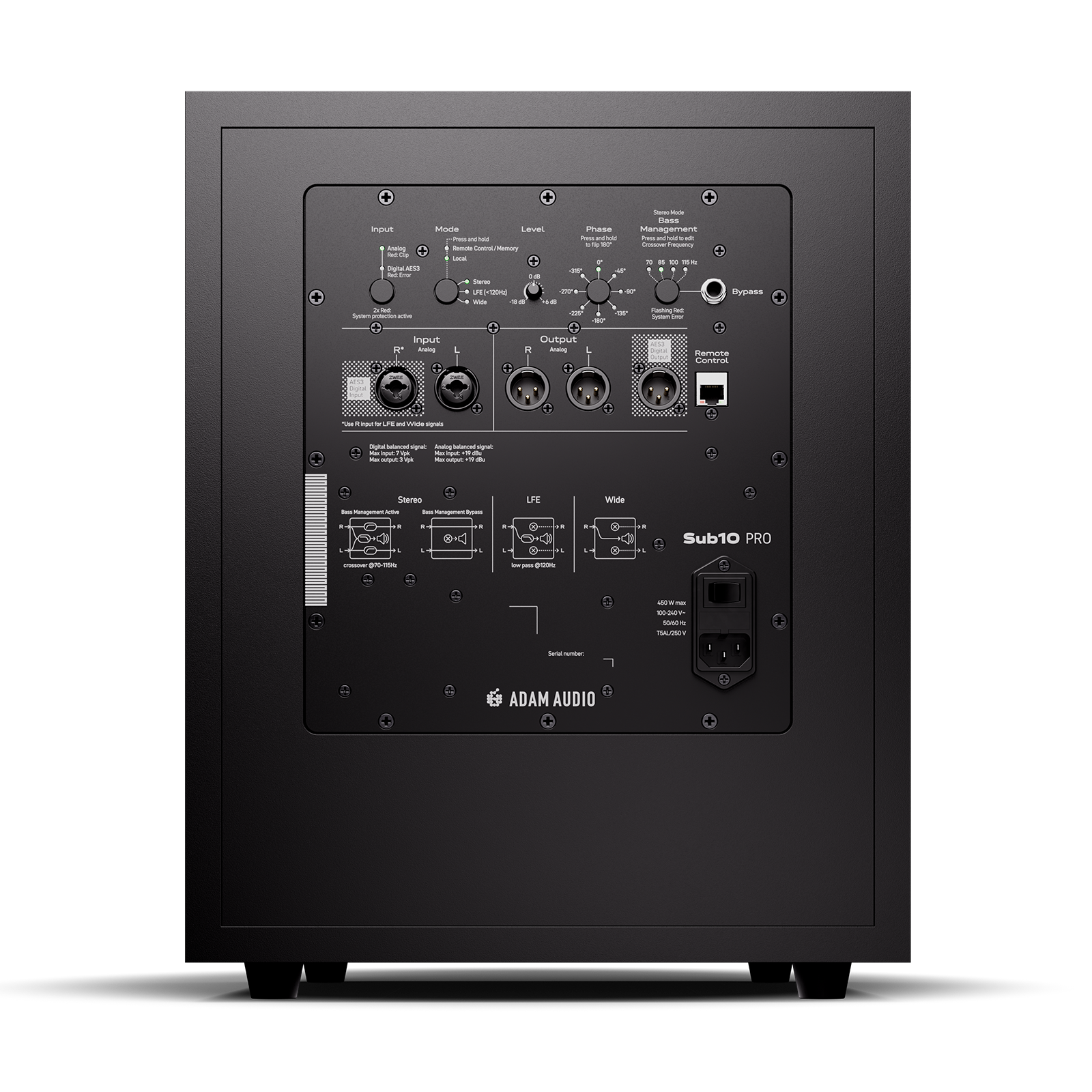

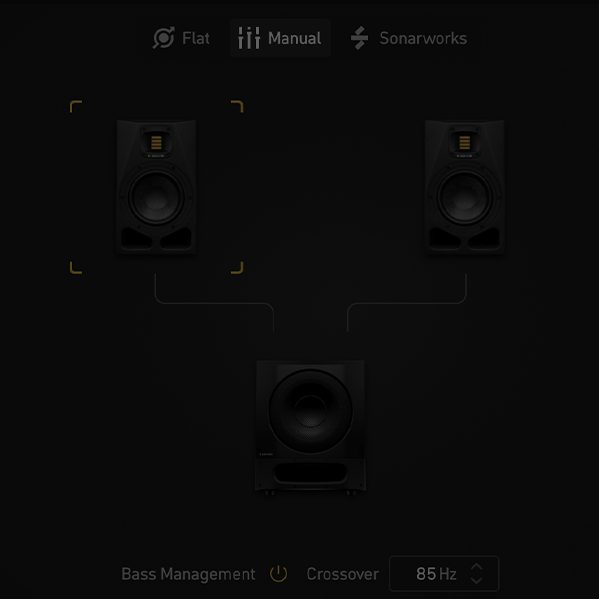

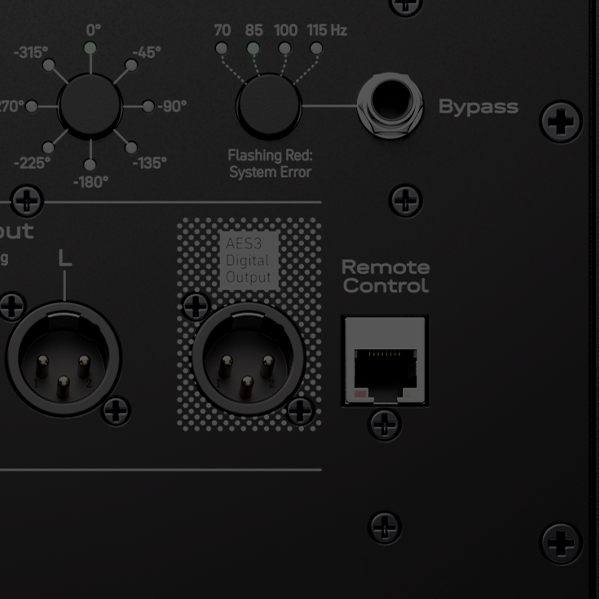

Professional connectivity on the backplate includes AES3 digital, balanced analog XLR and TRS, precise phase and crossover controls, plus a footswitch input for bass management. ADAM Control facilitates manual calibration over 4-bands of parametric EQ, plus the deployment of Sonarworks calibration profiles and firmware updates.

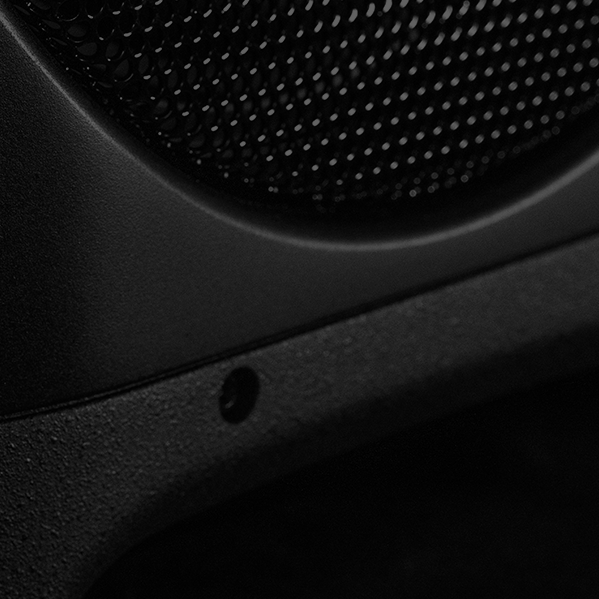

Three operating modes – Stereo, LFE and Wide – support conventional 2.1, immersive, and full-range applications. A robust wooden cabinet and protective metal grille ensure durability that is backed by a 2-year warranty, extendable to 5 years upon product registration.

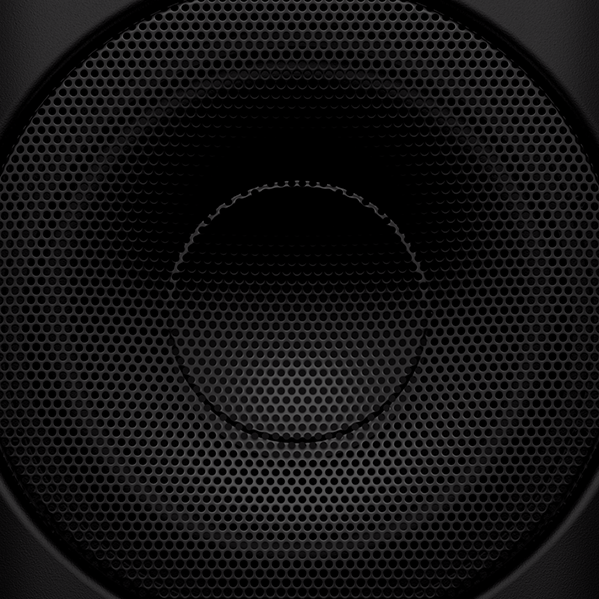

Fiber-reinforced, paper-based 10” Woofer
Total Peak Amp. Power: 200 W
Calibration options: ADAM Control, SoundID Reference by Sonarworks, Backplate
Frequency Response @ -6 dB: 21 - 300 Hz
Max. SPL at 1 m (Peak): 106 dB SPL

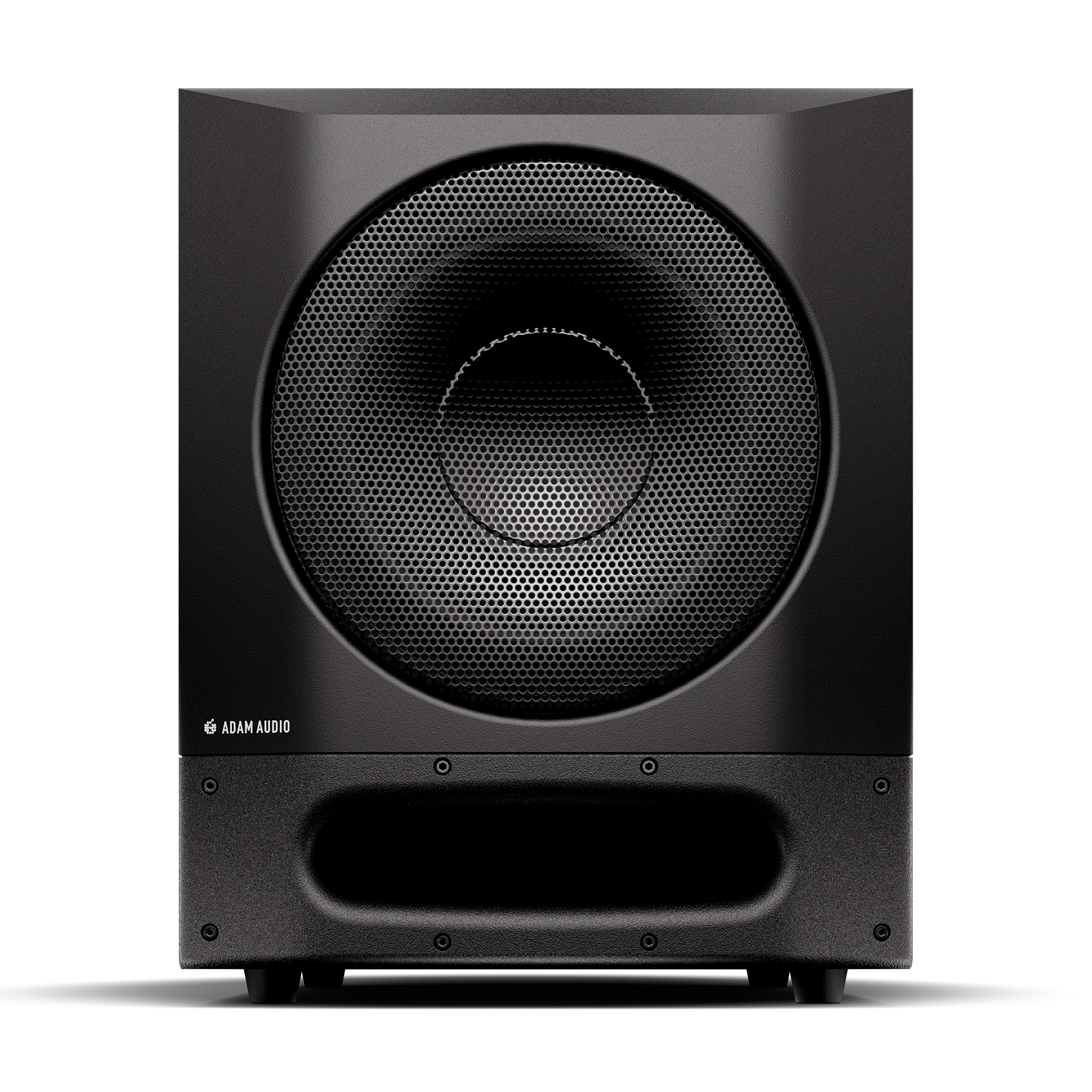

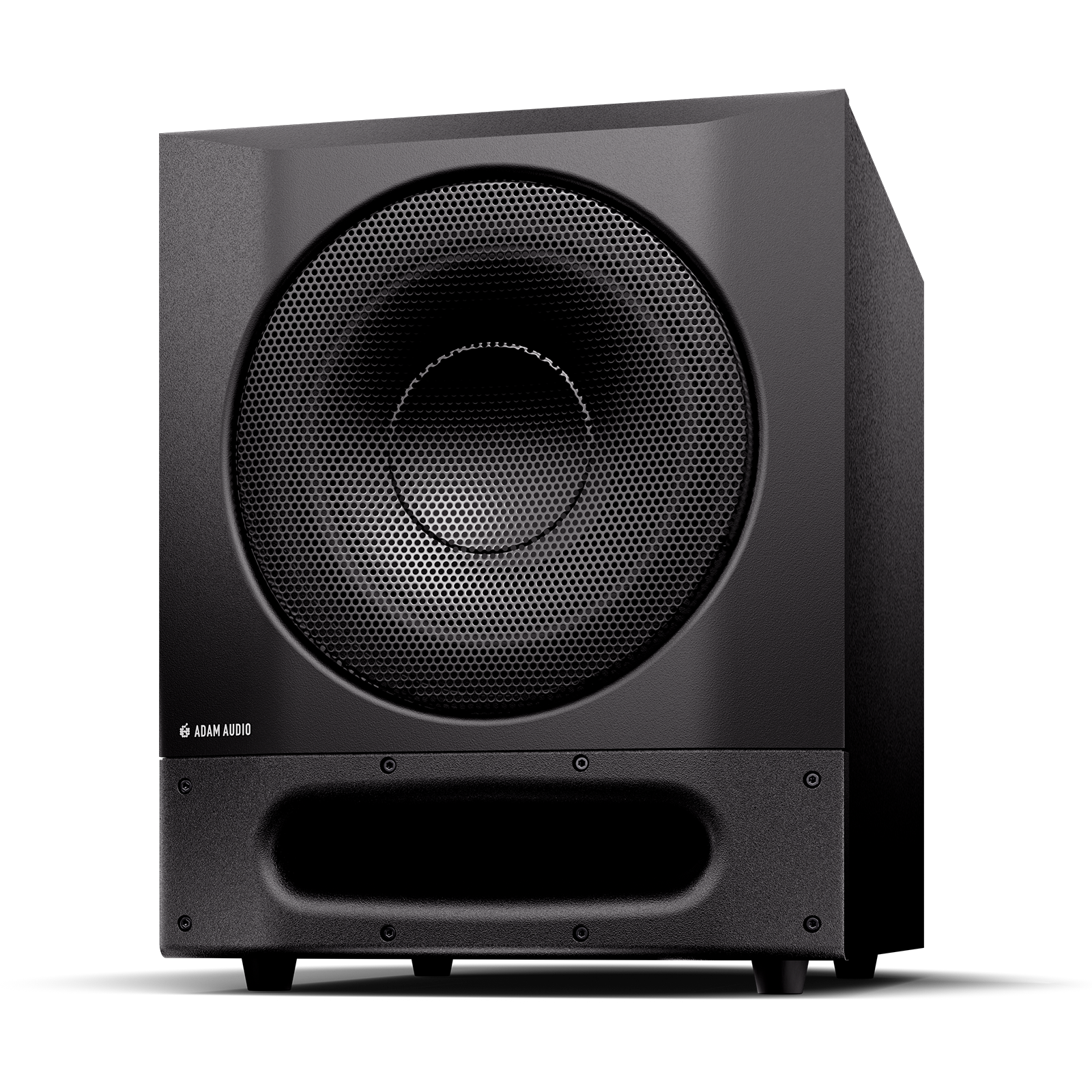

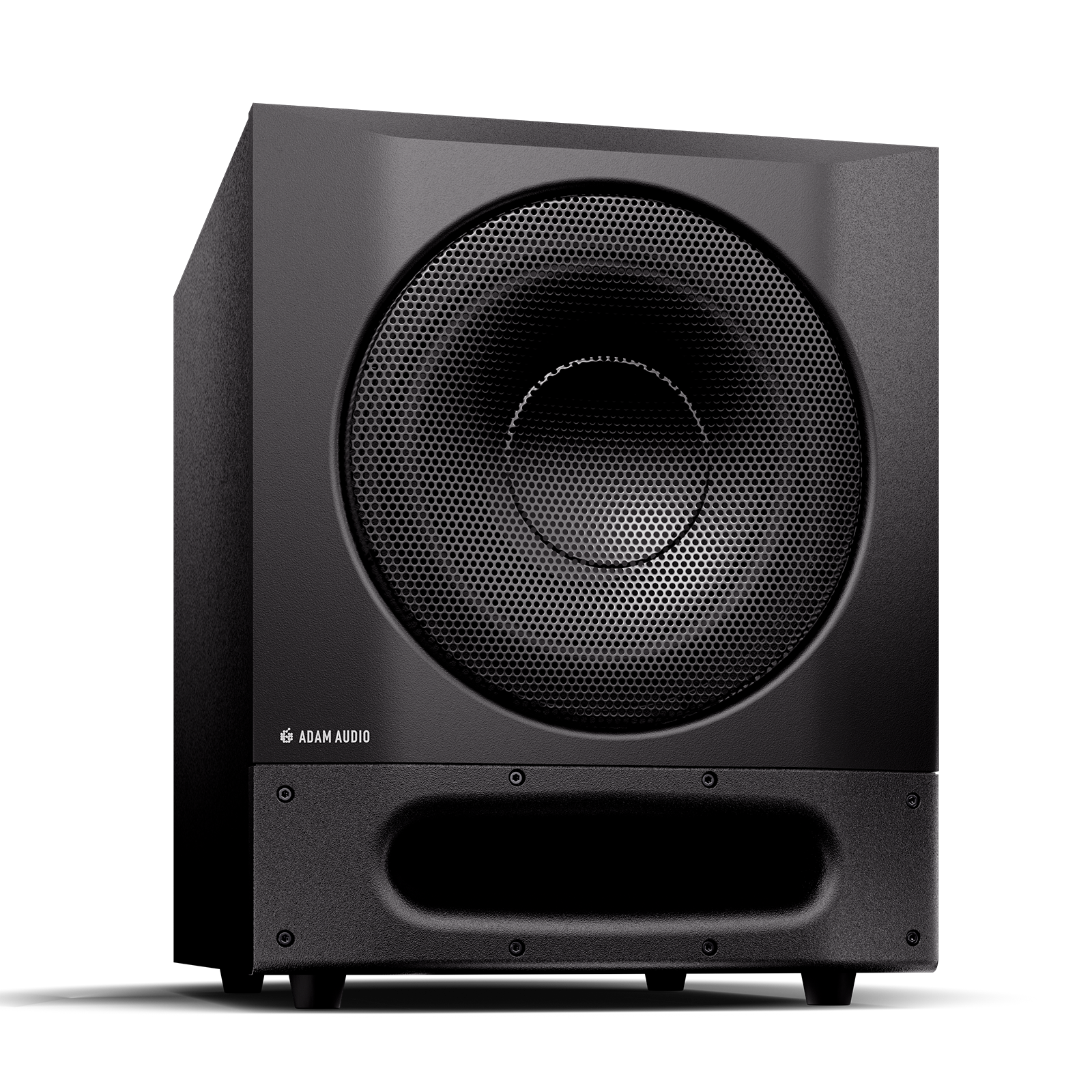

Beautiful from every angle
Technical Data
View the specifications of the ADAM Audio Sub10 PRO by clicking each drop-down section.
- General Data
- Cabinet Design: Front Fire and front ported
- Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
- Power consumption (max, standby): 450 W, 2.5 W
- AC Input Voltage: 100 – 240 V, 50/60 Hz
- Power Rating: 450 W max.
- Operating Conditions: -10° C to +40° C (+14° F to +104° F); <75% RH, non-condensing
- Weight: 22.8 kg (50 lbs 4 oz)
- Dimensions (Height x Width x Depth): 450 mm x 360 mm x 450 mm (17 3/4″ x 14 1/8″ x 17 3/4″)
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents: Sub10 PRO subwoofer, power cable, Quick Start Guide
- Audio Connectors
- Analog Inputs: 2 x XLR / TRS combi
- Digital Input: XLR AES3
- Analog Input Impedance: 25 kOhm
- Digital Input Impedance: 110 Ohm
- Max. Input Level: +19 dBu
- Analog Outputs: 2 x XLR
- Digital Outputs: XLR AES3
- Amplification
- Amplifier Type: PWM
- Peak (10% THD, limiter deactivated): 325 W
- RMS (1% THD, limiter deactivated): 200 W @ 3 Ohm
- Control Options [via Network]
- Networking Connector: RJ45
- Connection Type: Ethernet
- Communication Protocol: AES70 / TCP
- Control Software: ADAM Control (Windows and MacOS available)
- Advanced Room Adaptation: 4-bands QEQ
- Third-party calibration compatibility: Sonarworks SoundID Reference
- Acoustics
- Frequency Response @ -3 dB: 22 – 264 Hz
- Frequency Response @ -6 dB: 21 – 300 Hz
- Crossover Frequencies: 70, 85, 100, 115 Hz (variable via ADAM Control)
- Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS): 106 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak): 110 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 25 Hz to 50 Hz) @ 10% THD (RMS): 102 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 25 Hz to 50 Hz) @ 10% THD (Peak): 105 dB SPL
- Max peak SPL in full space at 1 m with IEC-weighted noise (full range): 113 dB SPL
- Max peak SPL in full space at 1 m with IEC-weighted noise (85 Hz bass managed): 114 dB SPL
- Dolby DARDT max SPL in full space (full range bass managed): 113 dB SPL
- Driver
- Basket Diameter: 10″
- Voice Coil Diameter: 1 3/4″ (45 mm)
- Cone Material: Paper, fiber-reinforced
- Signal Processing
- AD converter: 24-bit (via XLR/TRS inputs)
- Internal sample rate: 96 kHz
- Delay range and resolution: 0 – 10 ms, 32-bit
- Protection: Independent peak and thermo limiters, over current protection, over temperature protection, under voltage protection

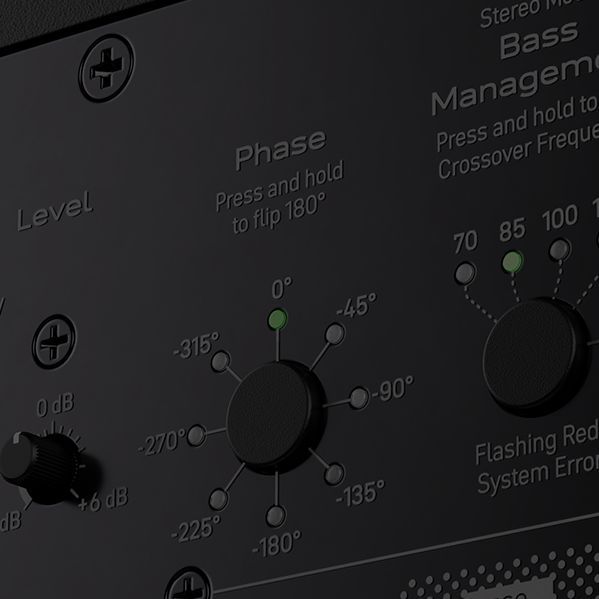

- Control Options [via Backplate]
- Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting, full space
- Level: -18 dB to +6 dB
- Input Selection: Analog, digital
- Phase: 0°, -45°, -90°, 135°, 180°, -225°, -270°, -315°
- Bass Management: 70, 85, 100, 115 Hz
- Operational Modes: Remote Control, Local / Stereo, LFE (<120Hz), Wide
- Bypass: Yes, via footswitch (not included) and TRS connection (latched)
Measurement Data
Here you can view the results of common loudspeaker measurements for the ADAM Audio Sub10 PRO.
Additional Information
Read up on the user manual, the quick start guide or take a look at the product sheet.
