ADAM Audio A8X Studio Monitor

A8X

Near-/Midfield Monitor
Audio Test
Audio Test
Winner
Sound on Sound
Sound on Sound
Best Studio Monitor 2017

ADAM A8X

The A8X adds to the AX-Series as a unique model because its power and radiation characteristics allow it to be used as both a nearfield and midfield monitor. It represents a particularly attractive entry-level model for midfield monitoring which offers transparent reproduction of higher frequencies, clear mids and an excellent transient response.

The extra large, front-positioned bass reflex ports are perfectly matched with the bass/midrange driver that has a 1.5″ voice coil. Thus the A8X can play very low registers with a powerful punch, and the greatest possible precision. The 150 Watt PWM amplifier for the midrange speakers in conjunction with the 50 Watt A/B tweeter amp enable the A8X to generate impressive maximum sound pressure levels of 120dB per pair at one meter.

German Handmade Precision X-ART Tweeter

8.5“ Woofer (Carbon/Rohacell/Glass Fiber)

Amp. Power RMS / Music: 200 W / 300 W

Frequency Response: 38 Hz - 50 kHz

Max. SPL per pair at 1 m: ≥120 dB

STATE OF THE ART TECHNOLOGY

ADAM Audio monitors have earned a worldwide reputation as the preeminent tool for sound engineers based on technological innovations that we’ve established in the field of loudspeaker technology.

Approved BY OUR PROFESSIONAL COMMUNITY

With an absolute transparent reproduction of the high frequencies, a good midrange and an excellent pulse fidelity in the lower frequency area, the A8X shows its abilities as a very capable nearfield monitor. Workmanship and design is, just as expected from ADAM, top-notch quality.
Tamay Jentjens
Media Mixture
Its performance is comparable to much more expensive mid-field monitors (...), the A8X will seduce the masses effortlessly!
Audiofanzine
The winner of this test was the A8X from ADAM Audio that showed excellent linear sonics and a solid build. (…) Complex orchestral recordings were well struc¬tured and single instruments easily identifiable. All in all it offered a very precise soundstage. This astonish¬ing soundstage and detail is due to the tweeter that is powered by its own amplifier. What impressed us was how our Flamenco dancer could literally be heard turning in perfect circles. Impulsive kettledrums sounded dry and powerful, this being due to the 8.5” mid/low woofer and the cabinet dimensions.
Audio Test
Professional Audio

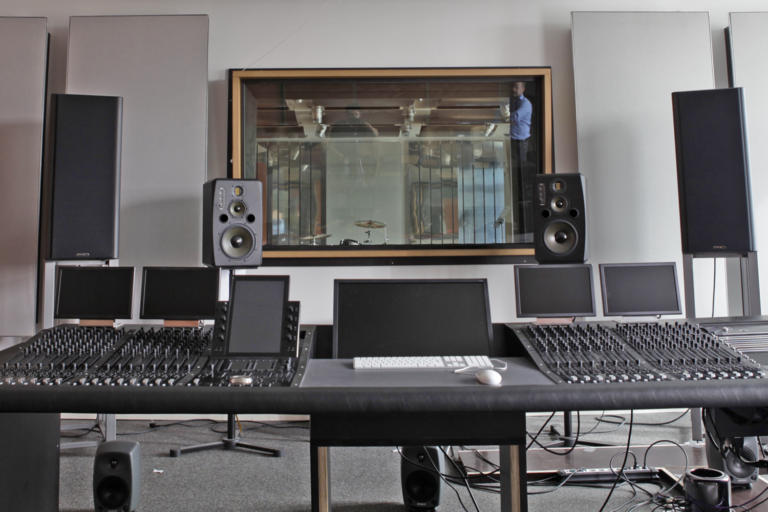

A8X in use

Press Reviews

Media-Mixture.de [English]
Download
PDF (131 KB)
Pro Sound News Europe [English]
Download
PDF (433 KB)
Audio Test [German]
Download
PDF (1.4 MB)
Professional Audio [German]
Download
PDF (490 KB)
Audio fanzine.com
DJ Lab [German]

Features & Benefits

Product Feature
Benefit to the customer
X-ART tweeter, handmade in Berlin
  • Allows longer operation with fewer signs of fatigue
  • Their breakup is prevented by the folded diaphragms, distortions are effectively reduced to a minimum
  • Advanced dynamic range due to acoustically effective diaphragm surface that is 2.5 times bigger (compared to a classic tweeter according to the piston principle)
The air velocity ratio of 4:1 during the sound generation by folded X-ART membrane

Direct, fast response in the high-range even with complex transients

Ultra-light but extremely dimensionally stable woofer material (Carbon/Rohacell/Glass fiber)

Excellent transient response even at high sound levels without breakup of the diaphragm

Vertical 2-way system with 8.5” woofer

High resolution of the stereo image

Spacious bass reflex ports on the front
  • Bass reproduction with very low compression
  • Allows positioning close to walls
Highly efficient PWM amplifier for the woofer coupled with an A/B amplifier for X-ART tweeter

Low-distortion amplification at both low and high volume levels

Linear frequency response of 38 Hz to 50 kHz

Unbiased reproduction in a very wide frequency band

Maximum peak sound pressure per pair in 1 m ≥ 120 dB

Powerful, compression-free sound reproduction even at very high sound levels

Simple, stepless room acoustic adjustments over tweeter gain, low and high shelf filters

Allows optimal adaptation to acoustically difficult listening environments

Analog XLR and RCA inputs

Optimized for balanced and unbalanced line signals

Acoustically optimized cabinet geometry

Reduction of unwanted reflections on the cabinets

Directional sound radiation in vertical plane

Reduction of early reflections on the surfaces of, e.g. mixing consoles, desks, etc.

Volume control and on/off switch on the front

Very easy to use

2 years warranty with optional extension to 3 years with the registration of the product

Full repair service if required for 5 years

Technical Data

Woofer

Number1
Basket Ø8.5" (220 mm)
Voice Coil Ø1.5" (38 mm)
Cone MaterialCarbon/Rohacell/Glass Fiber

Tweeter

Number1
TypeX-ART
Diaphragm Area4 inch² (2420 mm²)
Equiv. Diaphragm Ø2" (56 mm)
Velocity Transform Ratio4:1
Diaphragm Weight0.17 g

Built-in Amplifiers

Woofer1
TypePWM
Amp. Power RMS / Music150 W / 225 W
Tweeter1
TypeA/B
Amp. Power RMS / Music50 W / 75 W

Control Panel

Input Sensitivity-∞ to +14 dB
High Shelf EQ > 5 kHz±6 dB
Low Shelf EQ < 300 Hz±6 dB
Tweeter Gain±4 dB

Input Connectors

AnalogXLR / RCA

General Data

Frequency Response38 Hz - 50 kHz
THD 90 dB / 1 m > 100 Hz≤0.5 %
Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m≥112 dB
Max. SPL per pair at 1 m≥120 dB
Crossover Frequencies2300 Hz
Input Impedance30 kOhm
Weight28.7 lb (13 kg)
Magnetically ShieldedNo
Height x Width x Depth15.5" (400 mm) x 10" (255 mm) x 12.5" (320 mm)
PanelFront
Warranty5 years (2 years warranty plus 3 years optional with product registration)
Delivery ContentsPower cord, manual
